Geometry
A. Total Length:
B. Handlebar Height:
C. Handlebar Length:
D. Wheelbase:
E. Wheel Diameter:
F. Minimum Seat Height:
G. Maximum Seat Height:
H. Chain Stay Length:
I. Frame Stack: 24.6 in
J. Frame Reach: 17.8 in
K. Effective Top Tube Length:
L. Head Tube Length:
M. Head Angle: 65°
N. Standover Height:
Specifications
Range: 60 - 80 Miles*
Battery: LG 48V 20Ah
Motor: 750W brushless geared hub motor

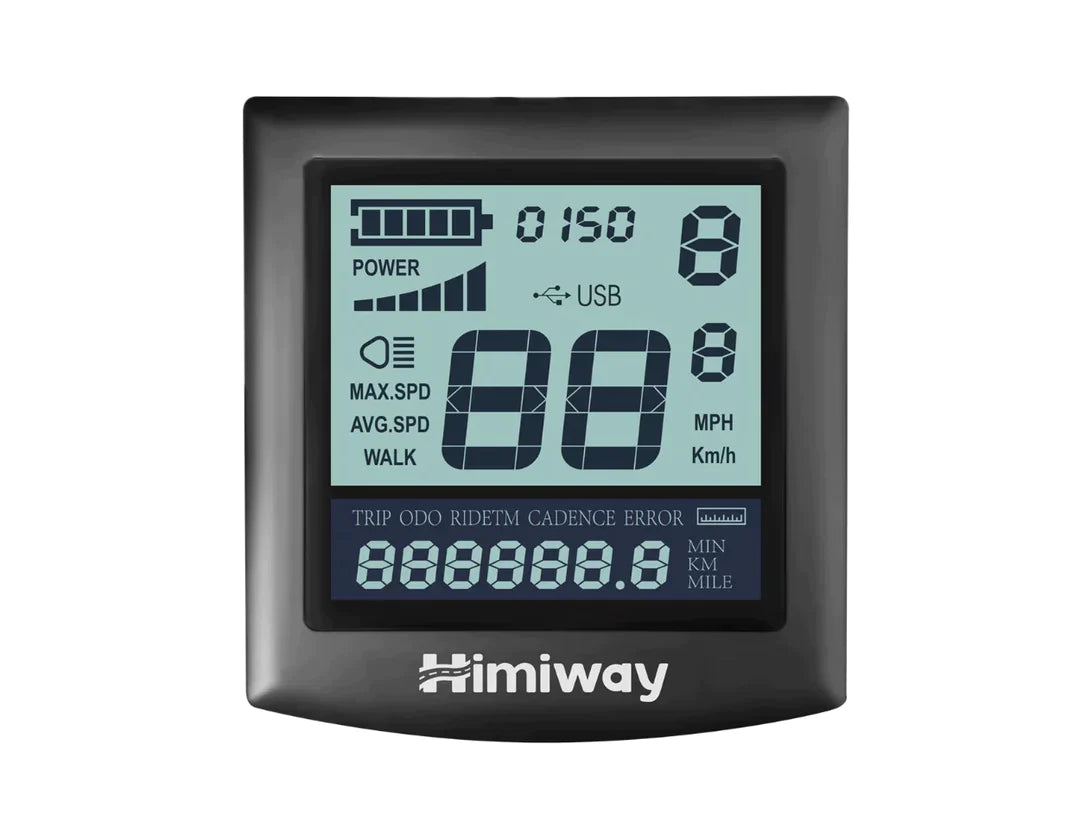

Display: LCD display with Type-c charger
Total Payload Capacity:
Recommended Rider Heights: 5'1" - 6'5"
Weight (with battery):
Charger: US standard 3.0 A smart charger
Pedal Assist: 0-5, Customizable
Controller: 48V/22A
Components
Throttle: Half Twist
Sensor: Torque sensor丨Speed sensor丨Brake sensor
Front Fork: TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
Drivetrain: Shimano Altus M310 7-Speed
Brakes: Tektro HD-E350 Hydraulic Brake with 180mm Rotors
Chain: KMC Z8.3 EPT 120L 8
Tires: Kenda 26" x 4.0" Fat Tire
Seat Post: SP-2003 30.9*350mm
Stem: Promax MA-400 28.6*90E*10D*41H
Spokes: 12G
Cassette: Shimano MF-TZ500-7 14-28T
Bike Frame: 6061 Aluminum
Pedals: Alloy pedal with reflectors
Headlight: 48V Luminosity Integrated Headlight
Taillight: Integrated Brake Light
Cranks: Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
Highlights
-
Updated 750W Motor
Featuring 750W of nominal power and 1200W peak power, the upgraded brushless hub motor uses the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the magnets' attenuation speed to guarantee a longer life expectancy.
- 86 Nm max torque
- 9 Degree climing angle
-
400lb Payload with Thicker Frame
It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.
- Payload Capacity: 400 pounds
- Weight: 79 pounds
-
960Wh High Performance Lithium-Ion Battery
New top of the line Samsung/LG battery technology combined with a 5,000mAh single cell capacity in smaller size for larger diversity. Compared with other 3500mAh cells made from nickel, cobalat and manganese, this 960Wh (20Ah) battery vastly imporoves the range, stability and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 8+ miles with pedal assist. The battery should maintain 80% capacity after 1,000 charges.
- Battery Weight: 8.8 pounds
- Range can be affected by several factors such as rider/payload weight, incline, pedal assist levels, weather, etc.
-
Tektro Hydraulic Brakes with 180mm Rotors
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
-
Half Twist Throttle
Immediate power right at the palm of your hand, easily accelerate when you need quick help from the motor.
-
Front Suspension
This alloy front suspension fork features 80mm of travel, a pre-load adjustment and fork lockout, making it in an excellent choice for overland biking.
