Geometry
A. Total Length:
B. Handlebar Height:
C. Handlebar Length:
D. Wheelbase:
E. Wheel Diameter:
F. Minimum Seat Height:
G. Maximum Seat Height:
H. Chain Stay Length:
I. Frame Stack: 24.6 in
J. Frame Reach: 17.8 in
K. Effective Top Tube Length:
L. Head Tube Length:
M. Head Angle: 65°
N. Standover Height:
Specifications
Range: 60 - 80 Miles*
Battery: LG 48V 20Ah
Motor: 750W brushless geared motor

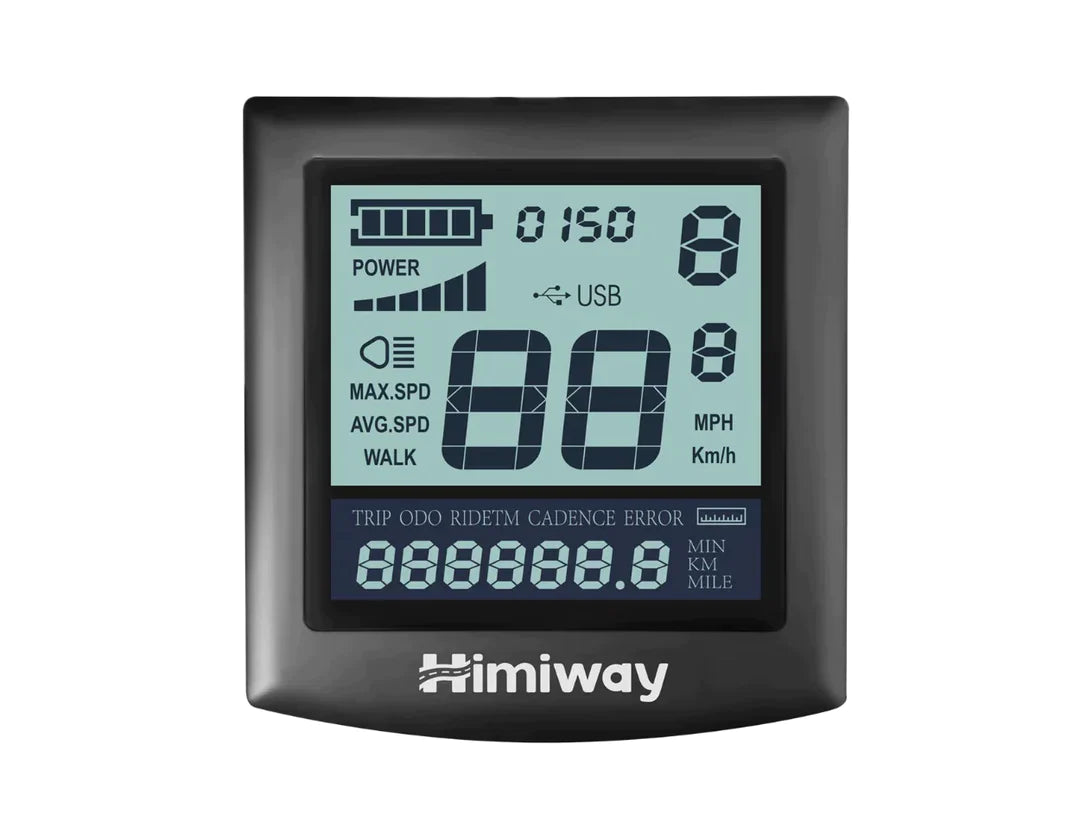

Display: LCD display with USB charger
Total Payload Capacity:
Recommended Rider Heights: 5'3" - 6'5"
Weight (with battery):
Charger: US standard 3.0 A smart charger
Pedal Assist: 0-5, Customizable
Controller: 48V/22A
Components

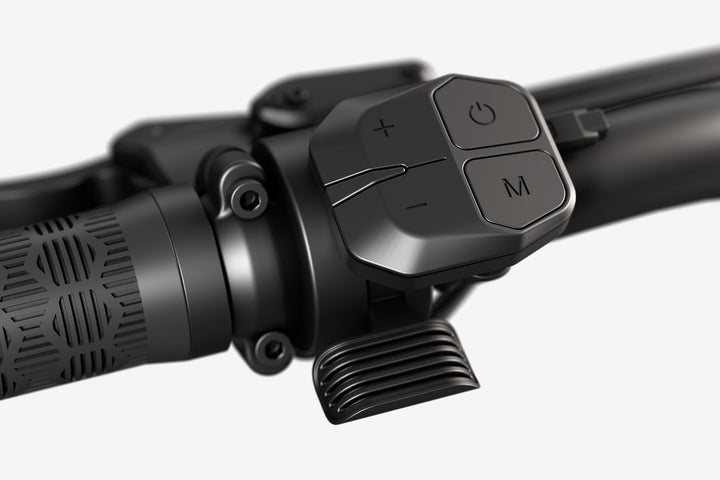

Throttle: Thumb throttle
Sensor: Torque sensor丨Speed sensor | Brake sensor
Front Fork: TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
Rear Shock :

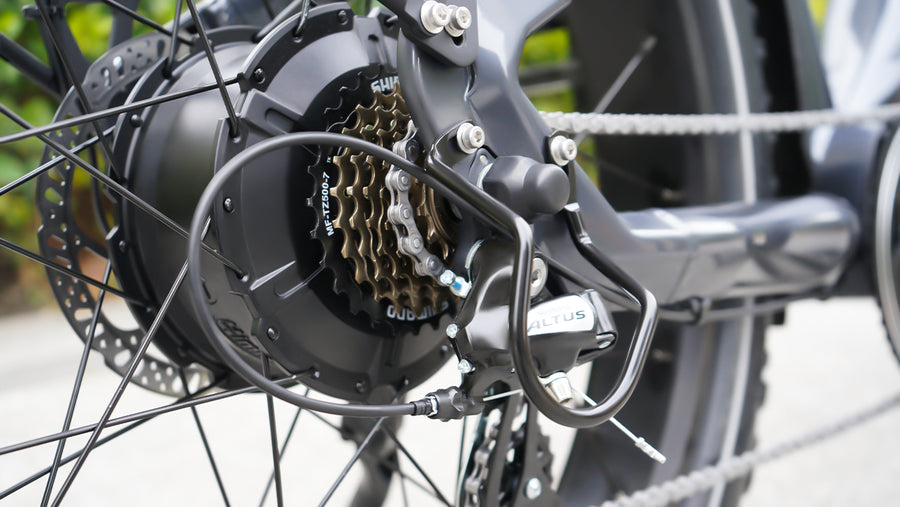

Drivetrain: Shimano altus M310 7 speed
Brakes: Tektro HD-E3520 hydraulic brakes with 180mm Rotors
Chain: KMC Z8.3 EPT 120L

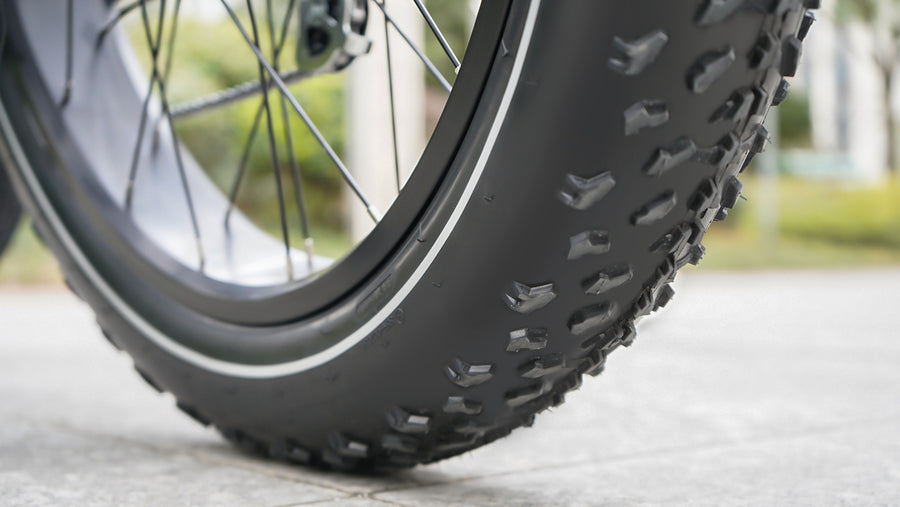

Tires: Kenda 26" x 4.0" Fat Tires
Seat Post: Himiway Seatpost 30.4mm
Stem: Zoom TDS-C269-8FOV 31.8*90mm
Spokes:
Cassette: Shimano MF-TZ500-7 14-28T
Bike Frame: 6061 Aluminum
Pedals: Alloy pedal with reflectors

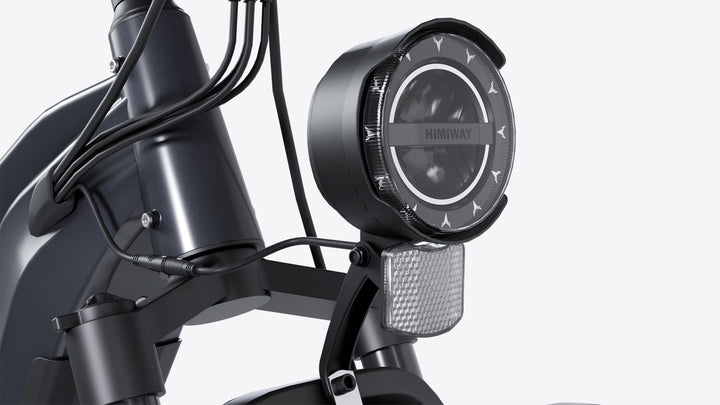

Headlight: 48V Luminosity Integrated Headlight

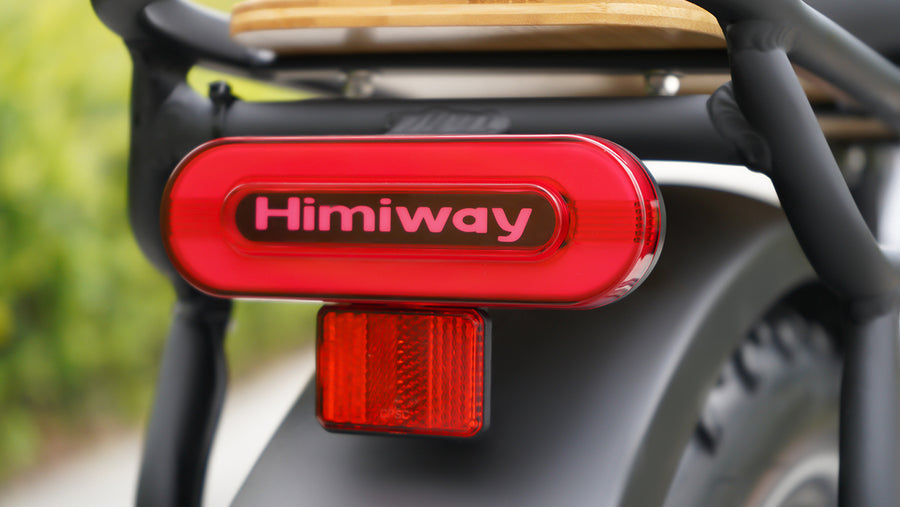

Taillight: Integrated Brake Light

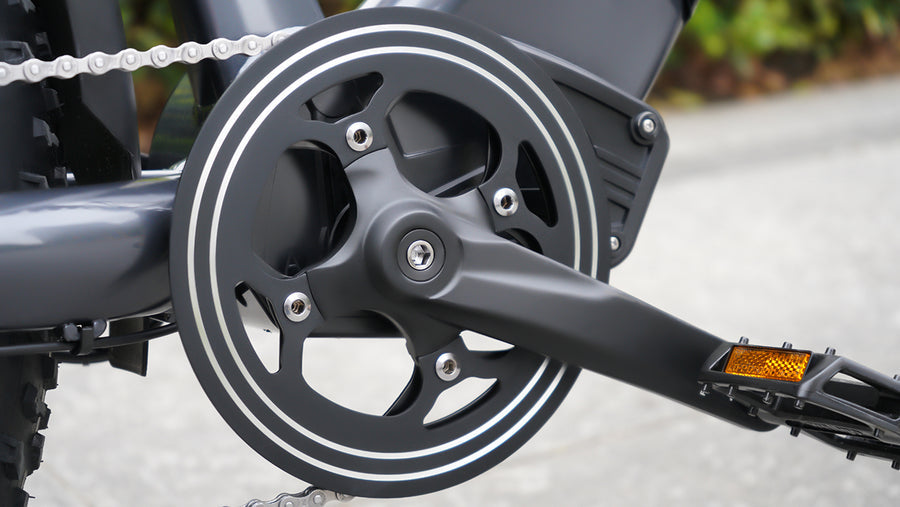

Cranks: Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
Highlights
-

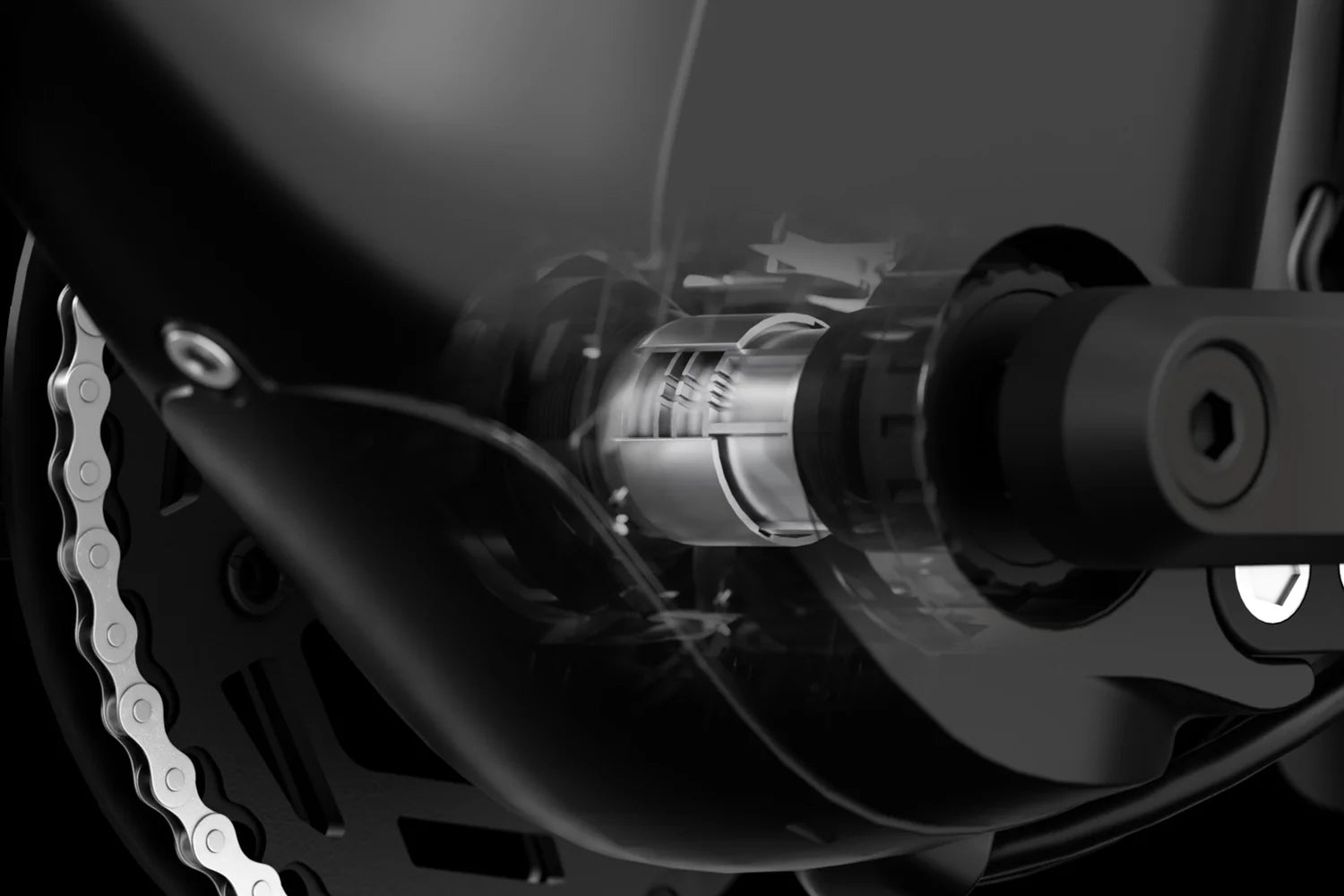

Torque Sensor
The torque sensor gives your ebike a much more natural bike riding feel than a traditional cadence sensor. It replicates the feeling of riding that many of us are used to and simply amplifies your efforts. Pedal hard and you’ll get maximum assist. Back off your intensity, and the assistance system will do likewise. Torque sensors can also be more efficient than cadence sensors, as the power delivered is based on the actual effort you put into the pedals and updates in real time. This efficiency can often mean you can eke extra miles out of a battery charge.
-

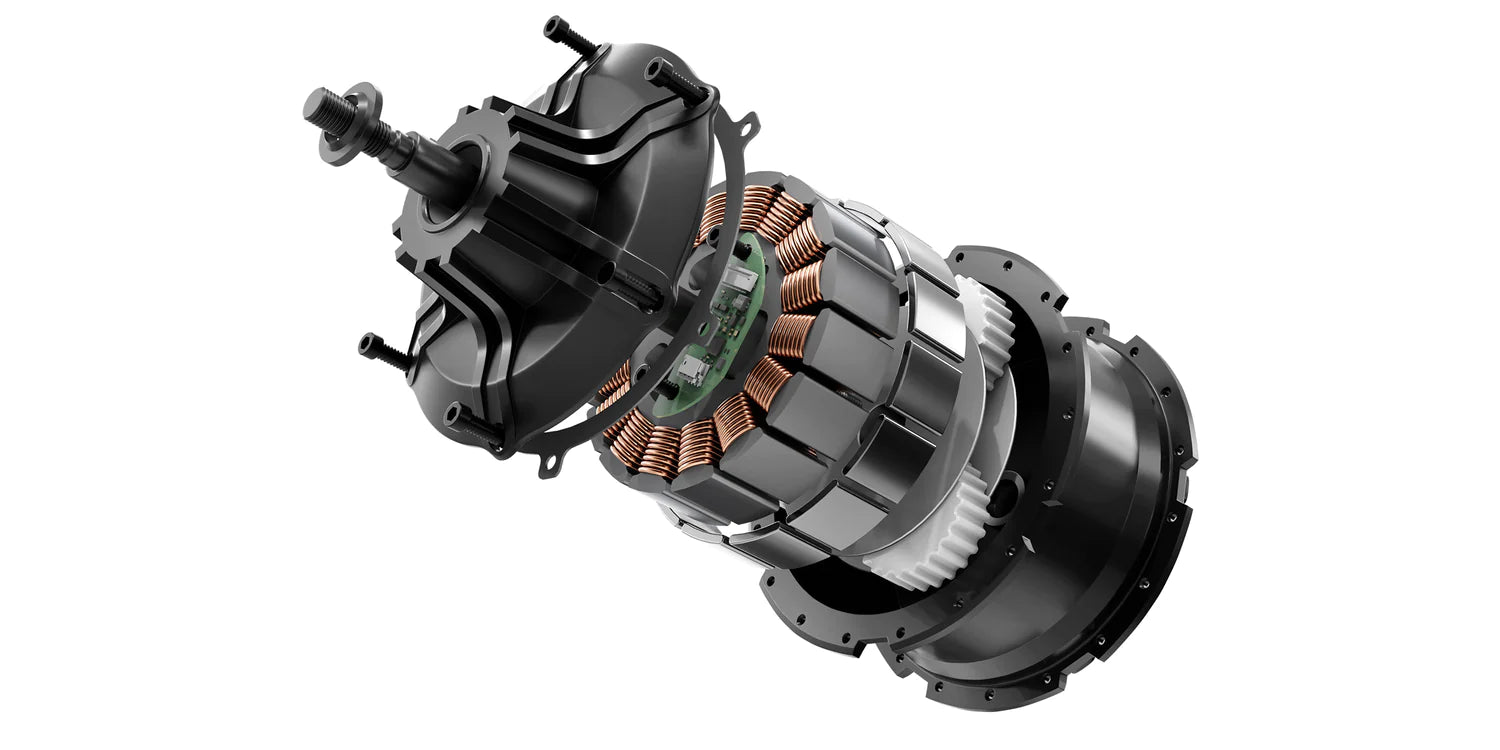

Updated 750W Motor
Featuring 750W of nominal power and 1200W peak power, the upgraded brushless hub motor uses the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the magnets' attenuation speed to guarantee a longer life expectancy.
- 86 Nm max torque
- 9 Degree climing angle
-

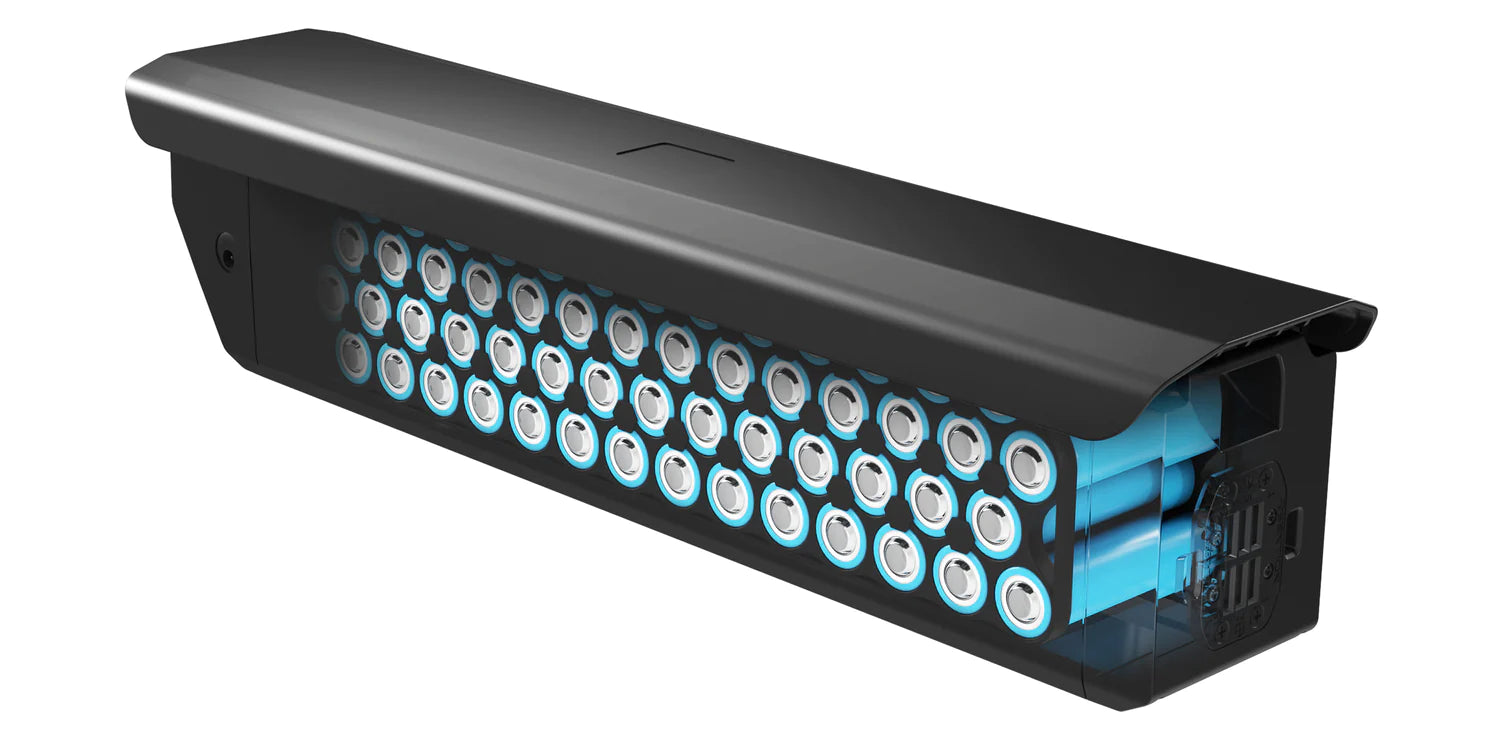

960Wh High Performance Lithium-Ion Battery
New top of the line Samsung/LG battery technology combined with a 5,000mAh single cell capacity in smaller size for larger diversity. Compared with other 3500mAh cells made from nickel, cobalat and manganese, this 960Wh (20Ah) battery vastly imporoves the range, stability and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 8+ miles with pedal assist. The battery should maintain 80% capacity after 1,000 charges.
- Battery Weight: 8.8 pounds
- Range can be affected by several factors such as rider/payload weight, incline, pedal assist levels, weather, etc.
-

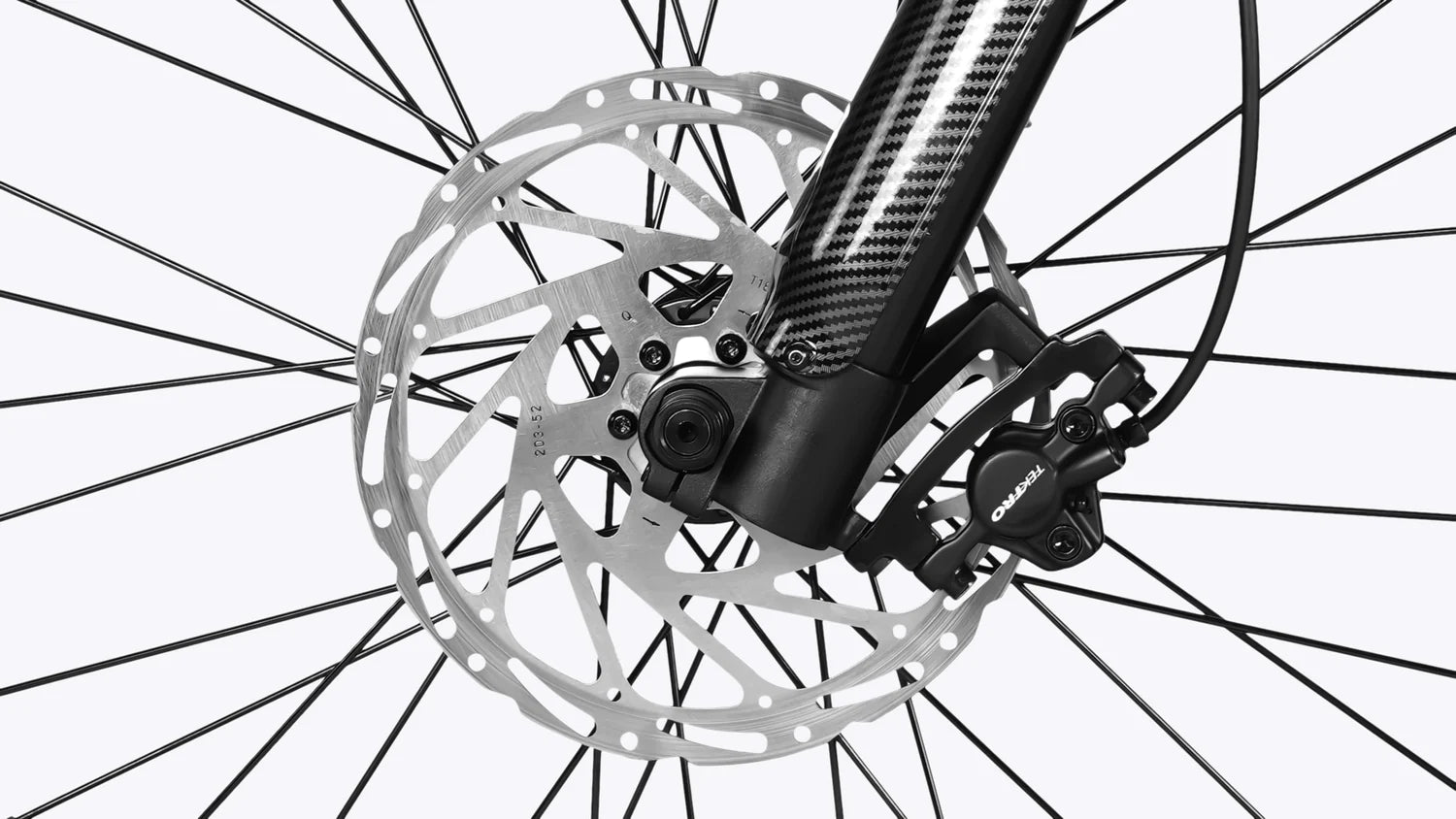

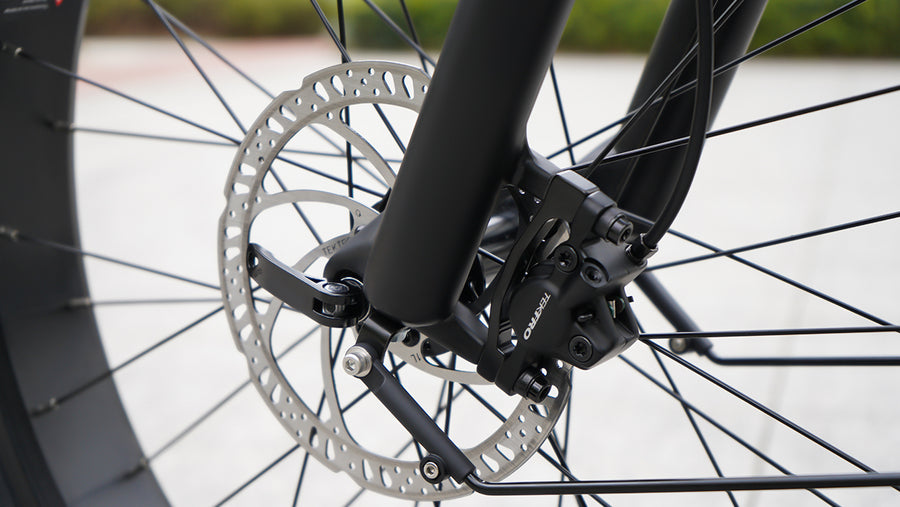

Tektro Hydraulic Brakes with 180mm Rotors
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
-

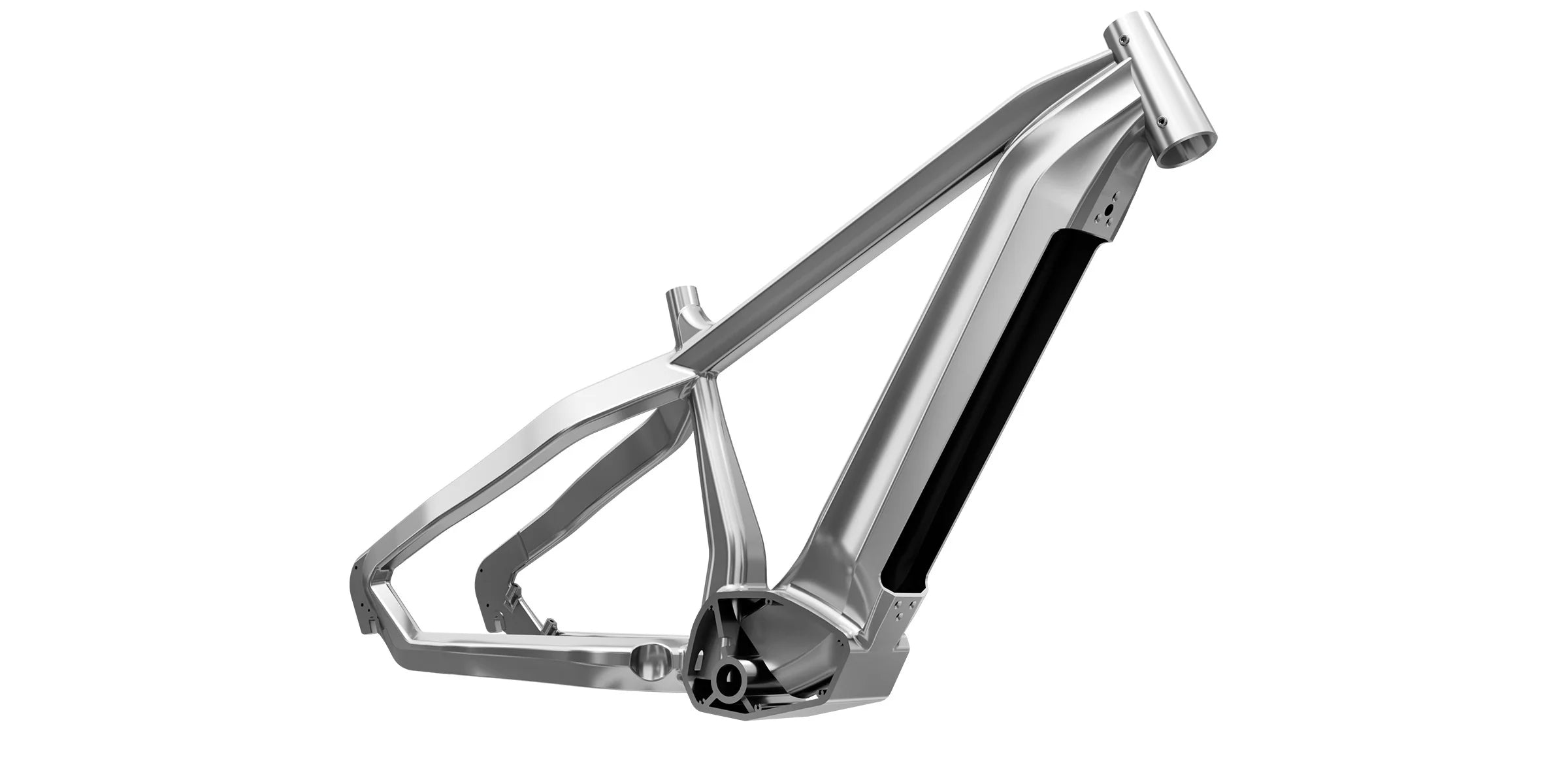

400lb Payload with Thicker Frame
It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.
- Payload Capacity: 400 pounds
- Weight: 79 pounds
-

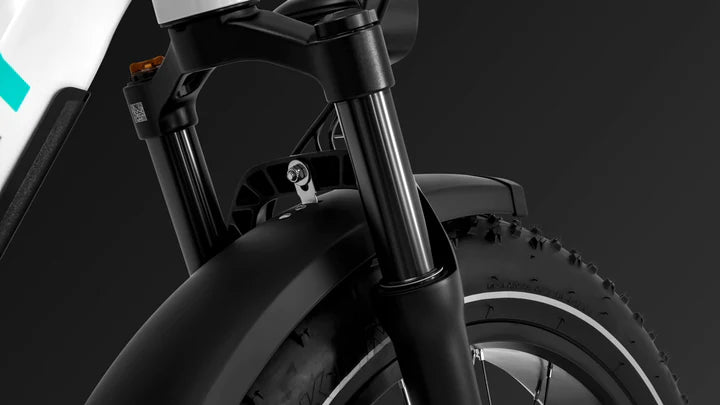

Front Suspension
This alloy front suspension fork features 80mm of travel, a pre-load adjustment and fork lockout, making it in an excellent choice for overland biking.
