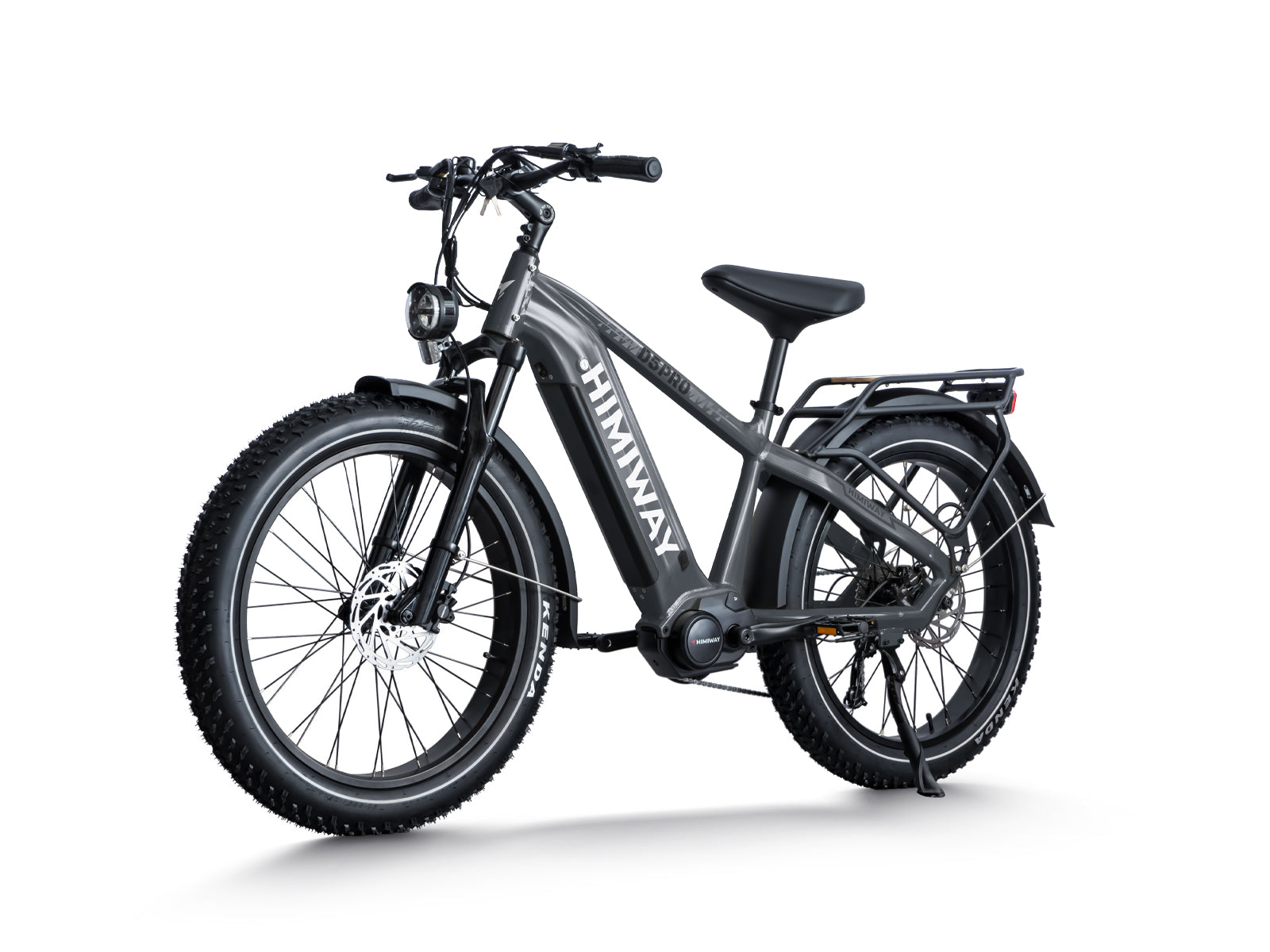

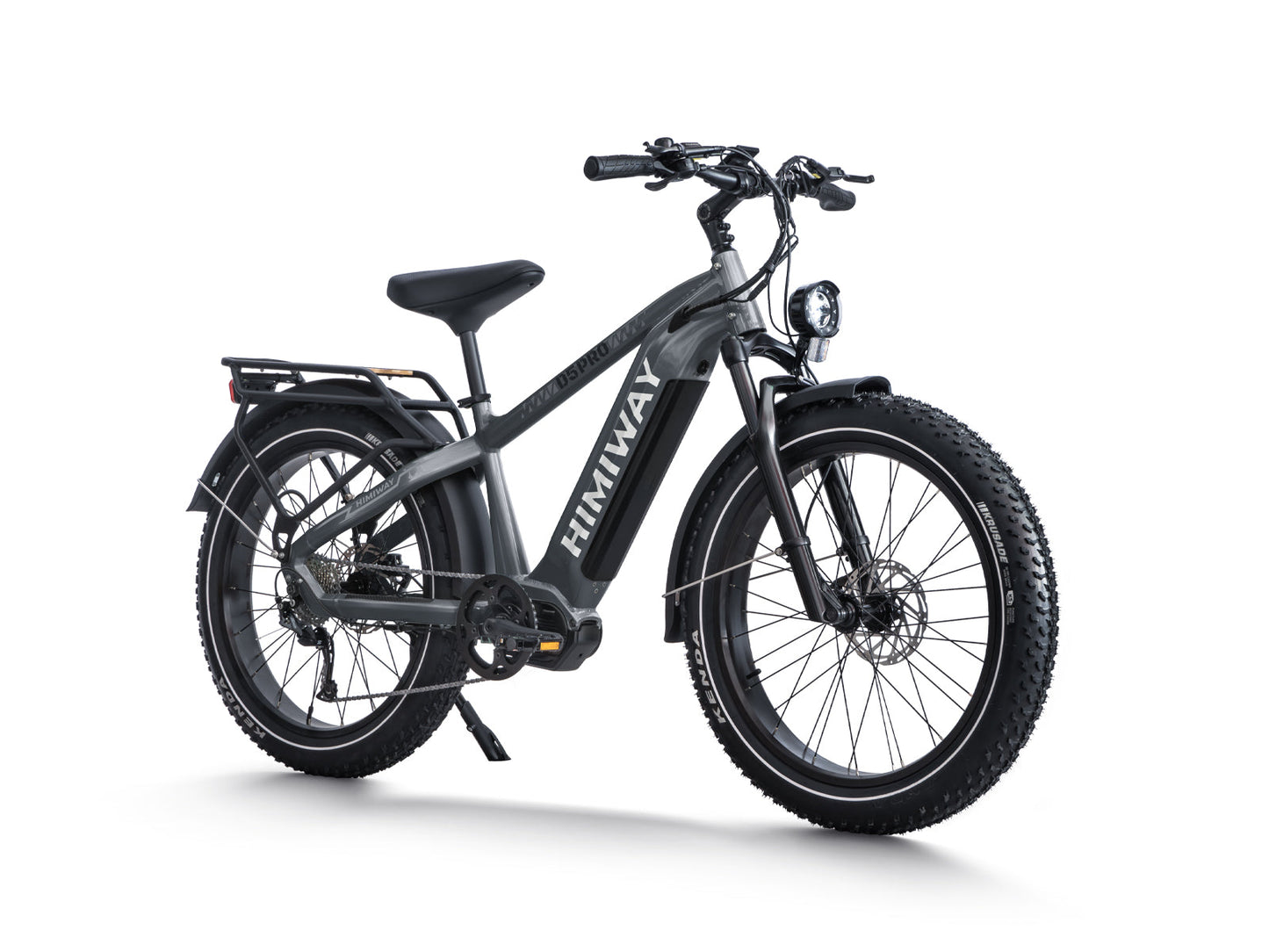

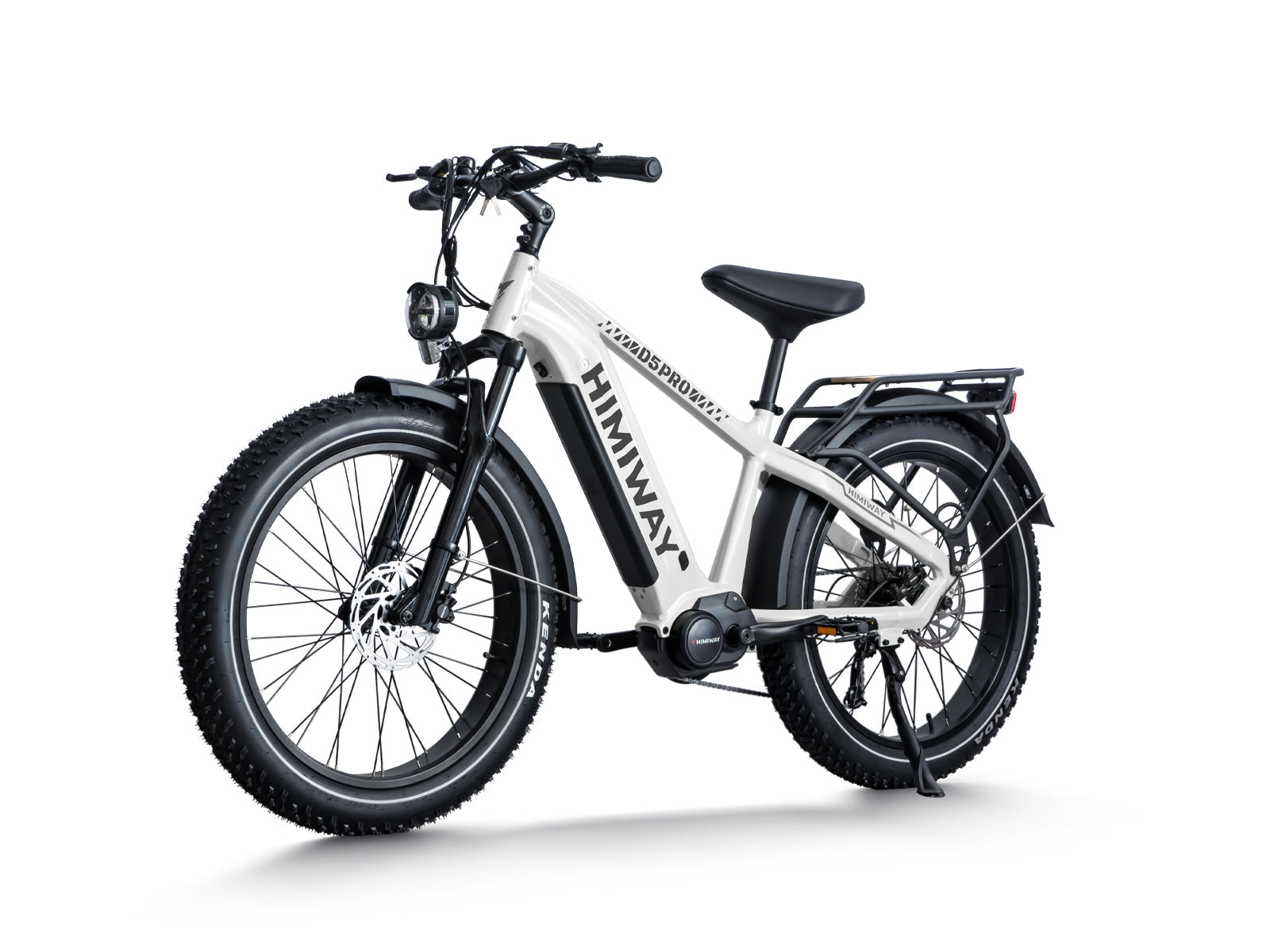

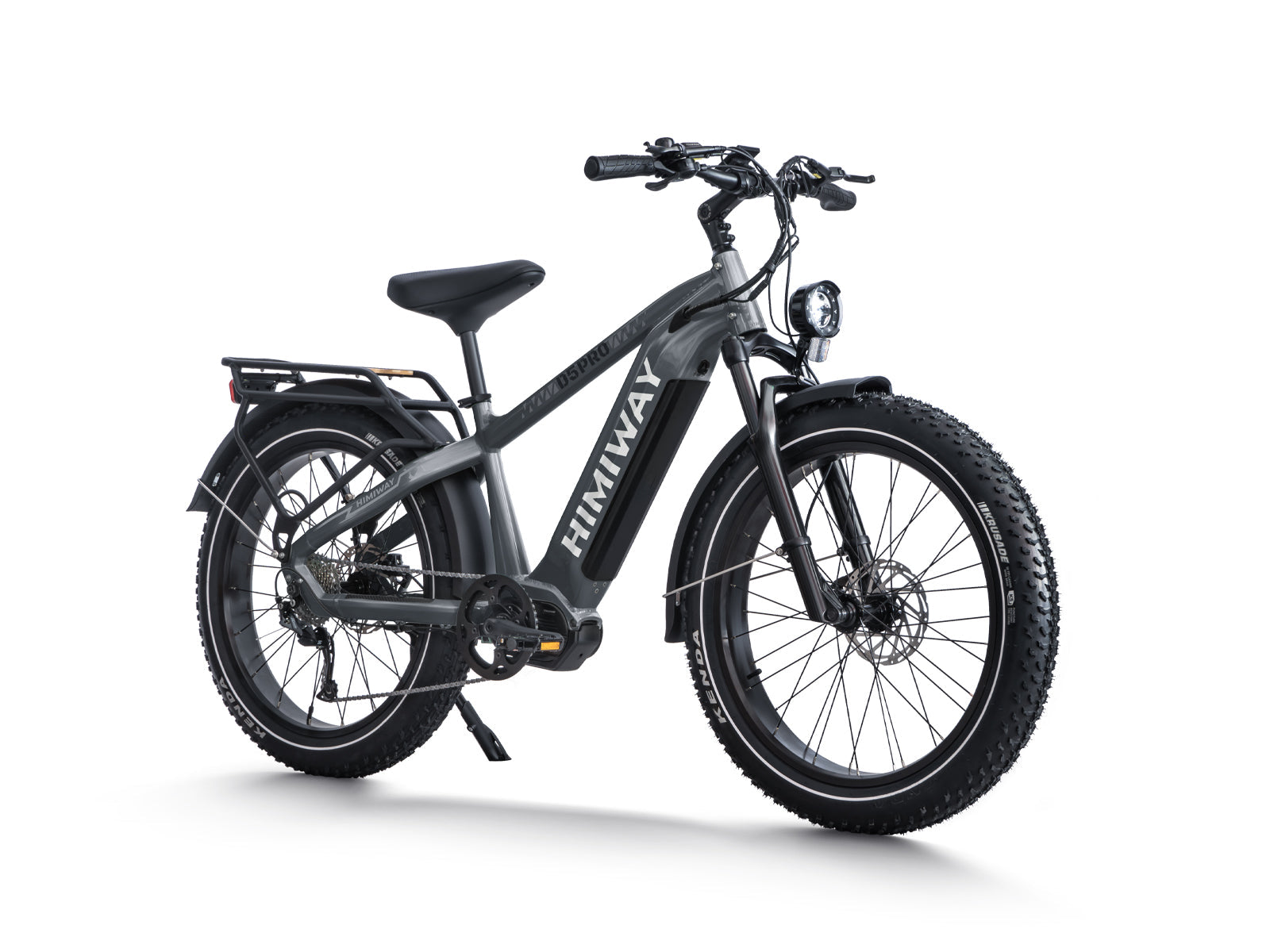

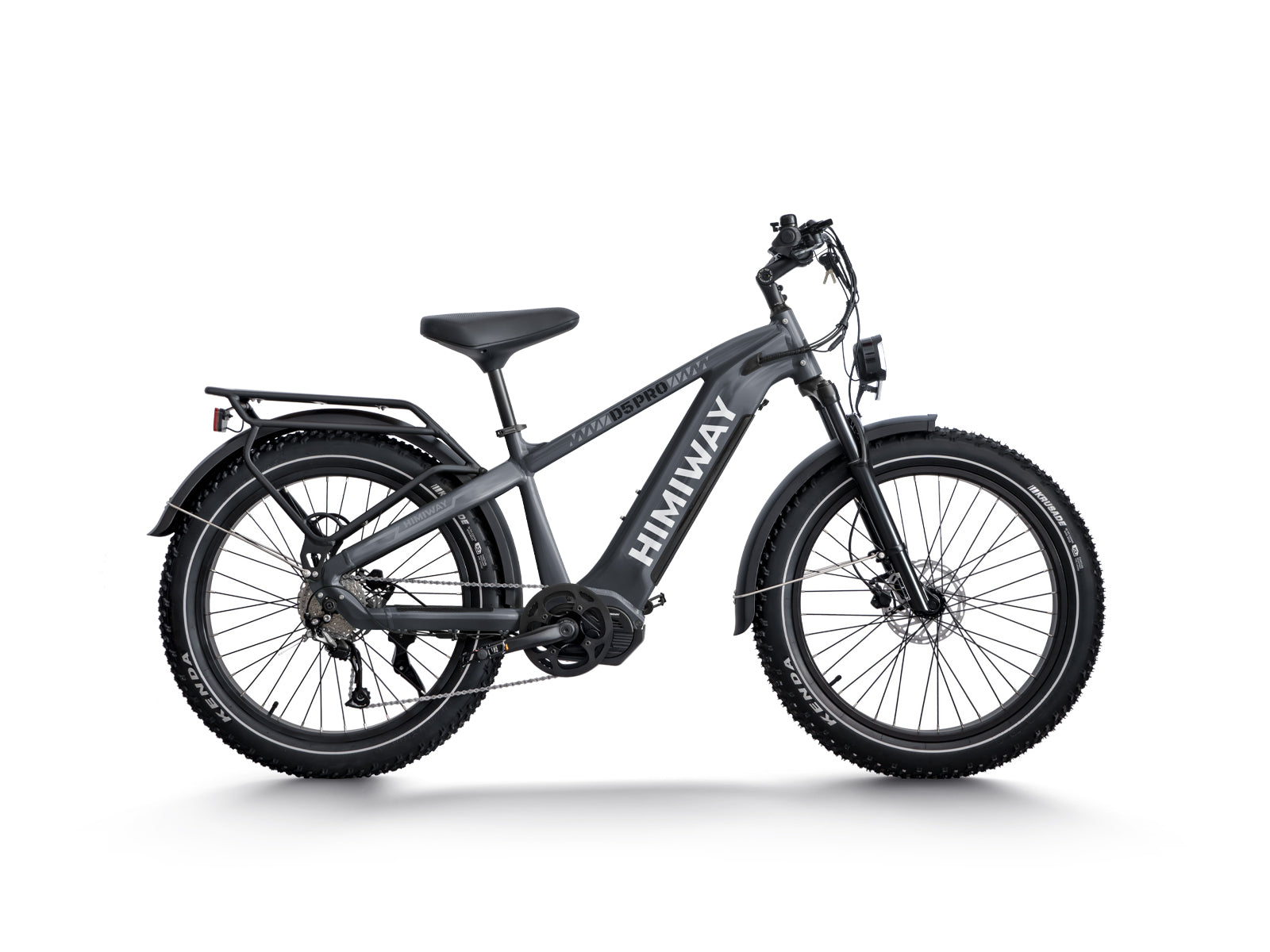

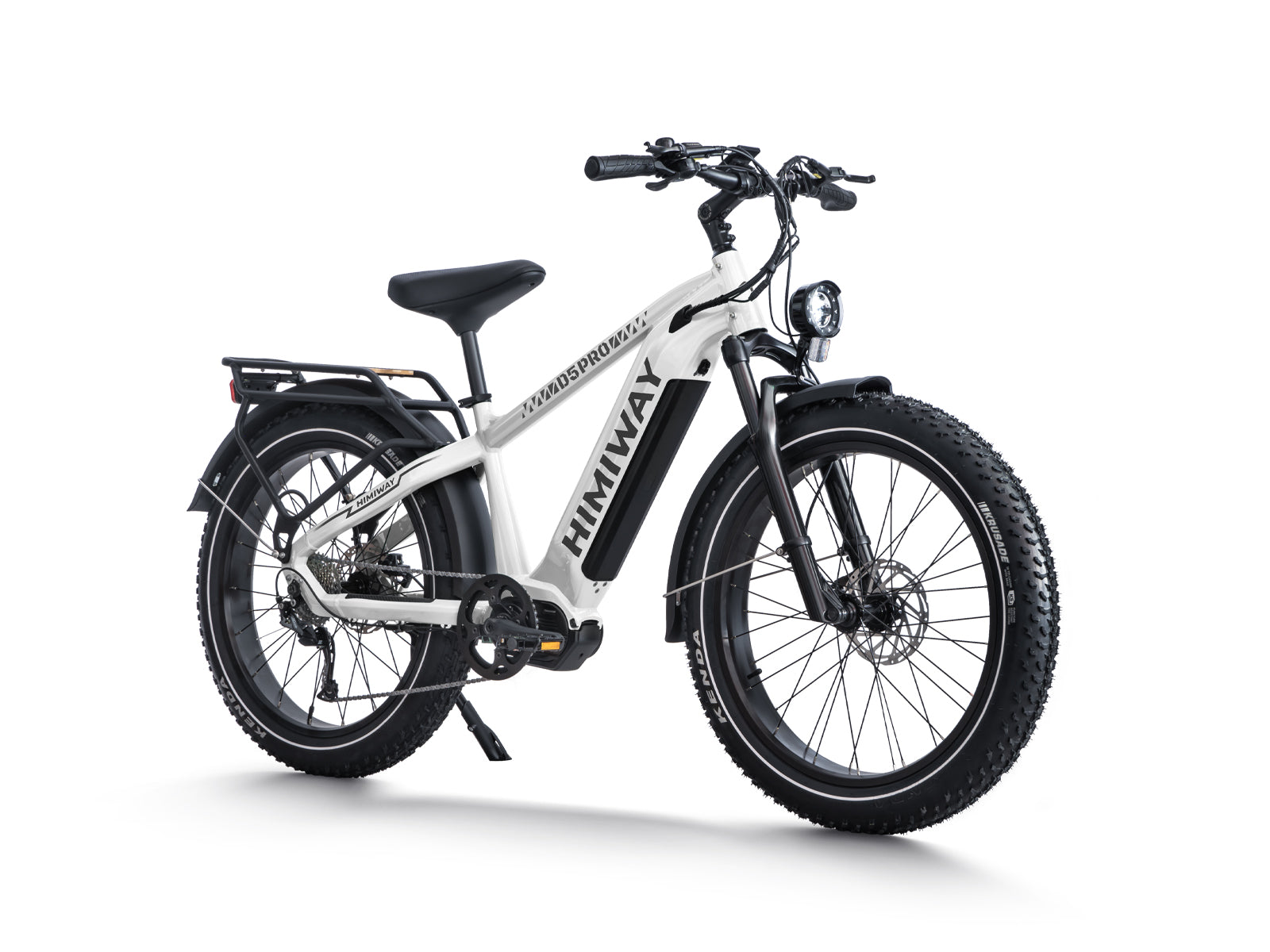

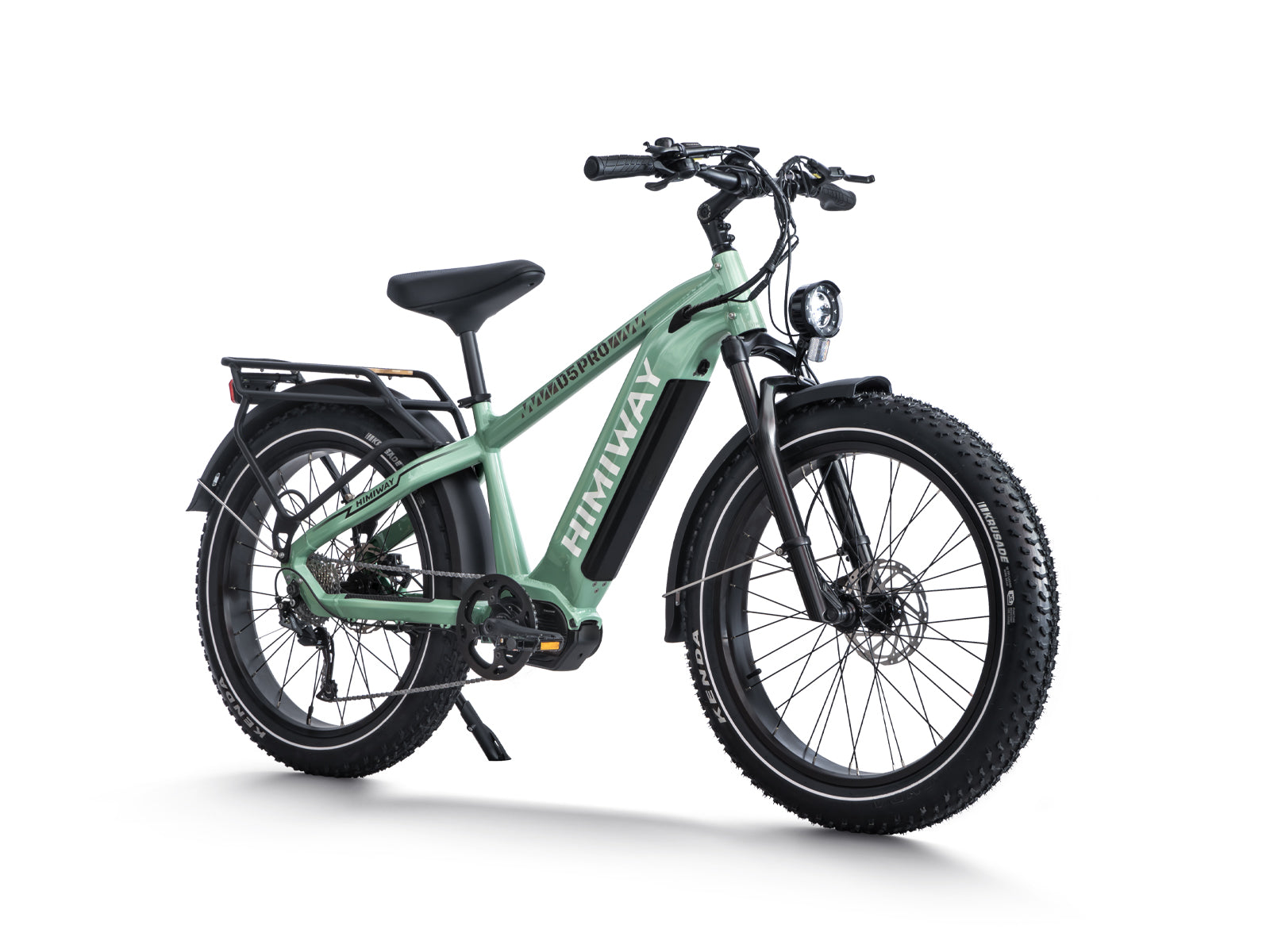

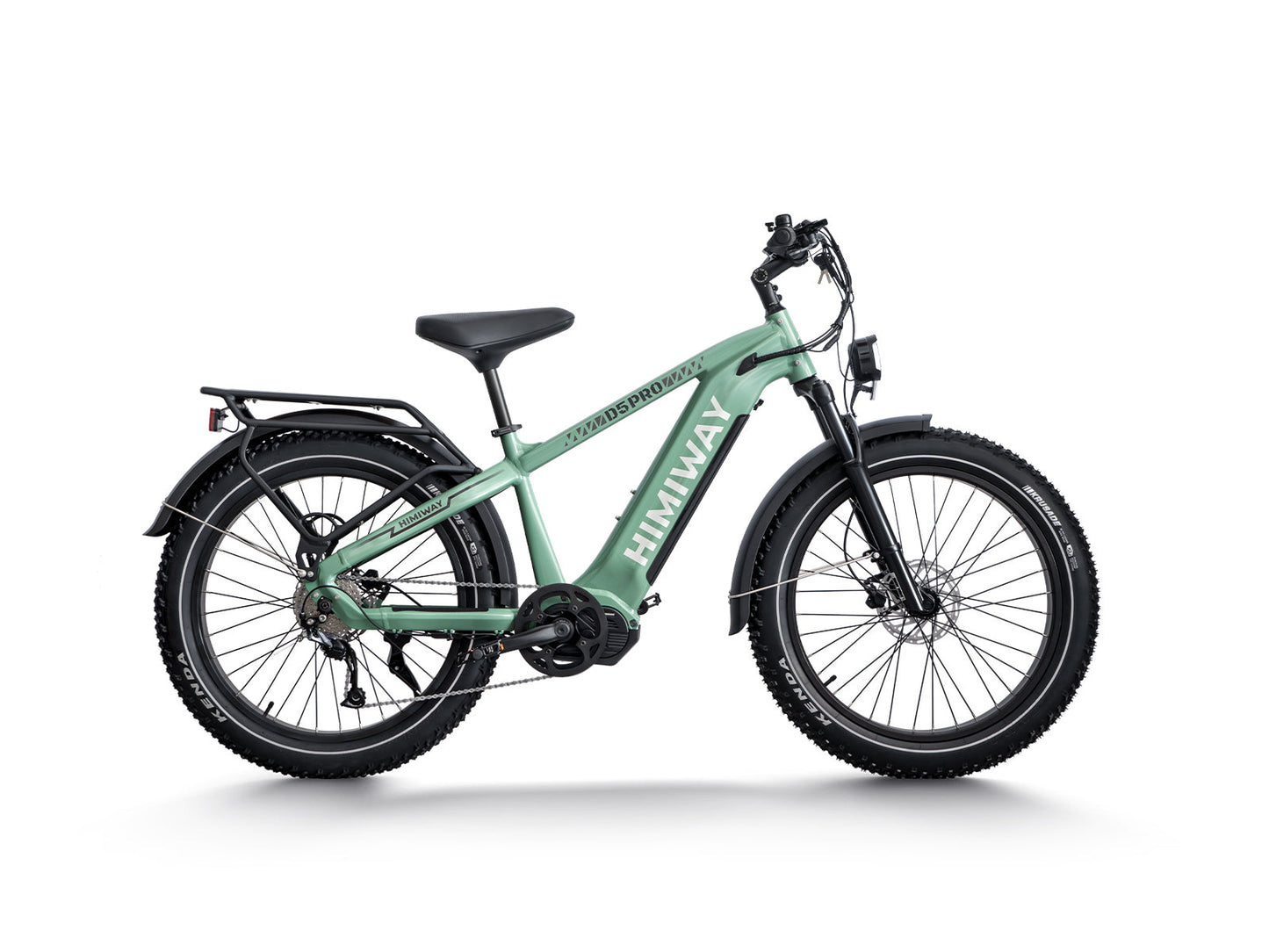

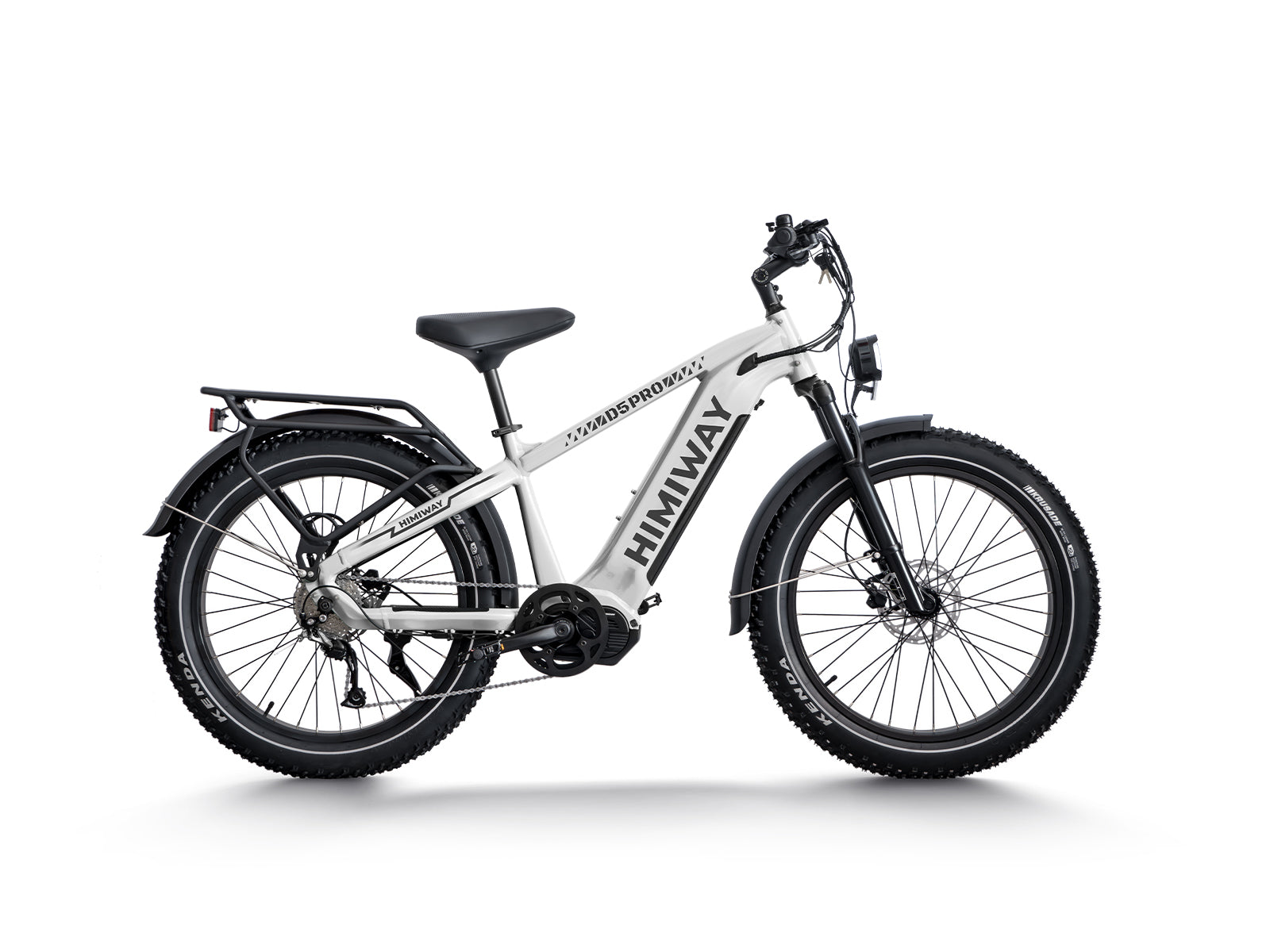

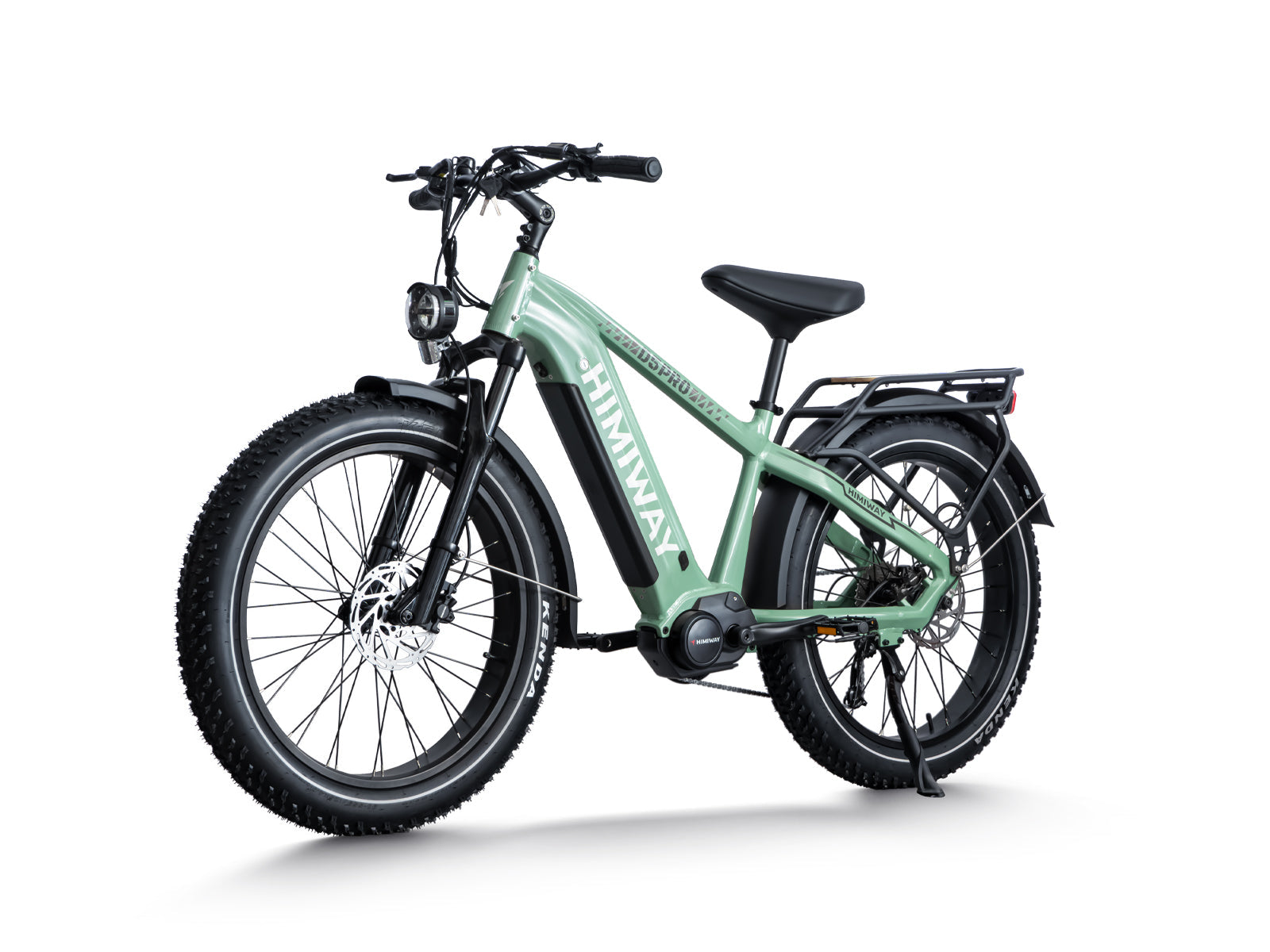

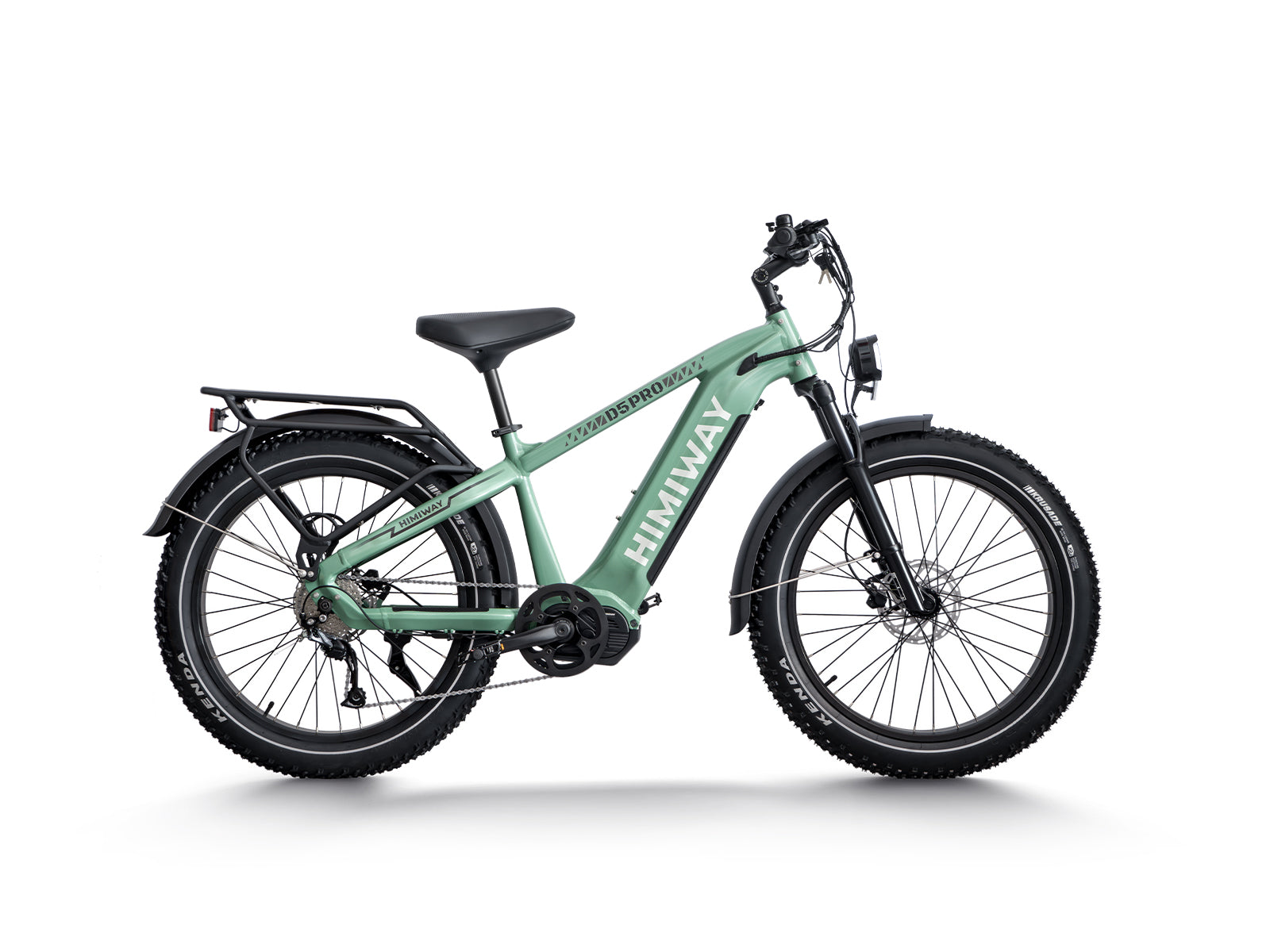

Himiway D5 Pro Stepover 500W Middrive Fat Tire All-Terrain Long Range E-Bike

$1,599.00 USD

~~$2,299.00 USD~~ $1,599.00 USD

Sale Sold out

Shipping calculated at checkout.

Color: Space Gray

Quantity

Take your fat tire D5 to the next level. Upgraded with a 500 Watt mid drive motor that gives you over 50% more torque with 130nm, the D5 Pro has the ability to climb nearly anything you put in front of it. It includes an upgraded 9-speed drivetrain to help with the efficiency and power of the mid drive motor. It's the ultimate all-terrain overlander electric bike. The easy step-through design allows for nearly anyone that wants to ride an e-bike. The new 20Ah 48V battery with Samsung/LG technology goes farther and lasts longer, with the ability to travel up to 80 miles on a charge with a life cycle of 1000 charges before losing 20% capacity. 26" x 4" fat tires roll over all terrains, with the smoothest, most comfortable ride you'll ever experience on a hardtail.

The D5 Pro comes in both a step-over and step through frame.

The D5 comes programmed as a Class 2 E-bike, with the ability to adjust the settings to upgrade to a Class 3 if desired. Be sure to follow all E-bike laws in your area before making any changes.

View full details

Geometry

A. Total Length: 78.7 in

B. Handlebar Height: 28 in

C. Handlebar Length: 28 in

D. Wheelbase: 49.2 in

E. Wheel Diameter: 28.7 in

F. Minimum Seat Height: 20.9 in

G. Maximum Seat Height: 31.4 in

H. Chain Stay Length: 19 in

I. Frame Stack: 24.6 in

J. Frame Reach: 17.8 in

K. Effective Top Tube Length: 24.4 in

L. Head Tube Length: 5.5 in

M. Head Angle: 65°

N. Standover Height: 31.1 in

Specifications

Range: 60 - 80 Miles*

Battery: LG/Samsung 48V 20Ah

Motor: Himiway 500W Mid Drive Motor

Display: LCD display with USB charger

Total Payload Capacity: 400 lb

Recommended Rider Heights: 5'3" - 6'5"

Weight (with battery): 79 lb

Charger: US standard 3.0 A smart charger

Pedal Assist: 0-5, Customizable

Controller: 48V/22A

Components

Throttle: Thumb throttle

Sensor: Torque sensor丨Shift Sensor | Speed Sensor | Brake sensor

Front Fork: TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle

Rear Shock :

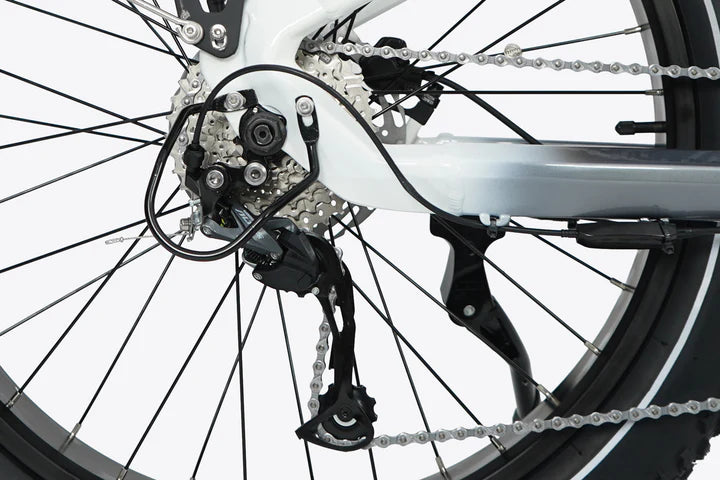

Drivetrain: Shimano Altus M2000 9 speed

Brakes: Tektro HD-E3520 hydraulic brakes with 180mm Rotors

Chain: KMC E9 EPT 124L

Tires: Kenda 26" x 4.0" Fat Tires

Seat Post: Himiway Seatpost 30.4mm

Stem: Zoom TDS-C269-8FOV 31.8*90mm

Spokes:

Cassette: Shimano CS-HG201-9 11-36T

Bike Frame: 6061 Aluminum

Pedals: Alloy pedal with reflectors

Headlight: 48V Luminosity Integrated Headlight

Taillight: Integrated Brake Light

Cranks: Crankarm: Prowheel 170mm / Chain ring: 44T BCD104

Highlights

Torque Sensor
The D5 Pro torque sensor intelligently adjusts electric assist in real-time, ensuring efficient, controlled cycling. This precise modulation offers a smoother ride, conserving energy while enhancing rider safety and stability.

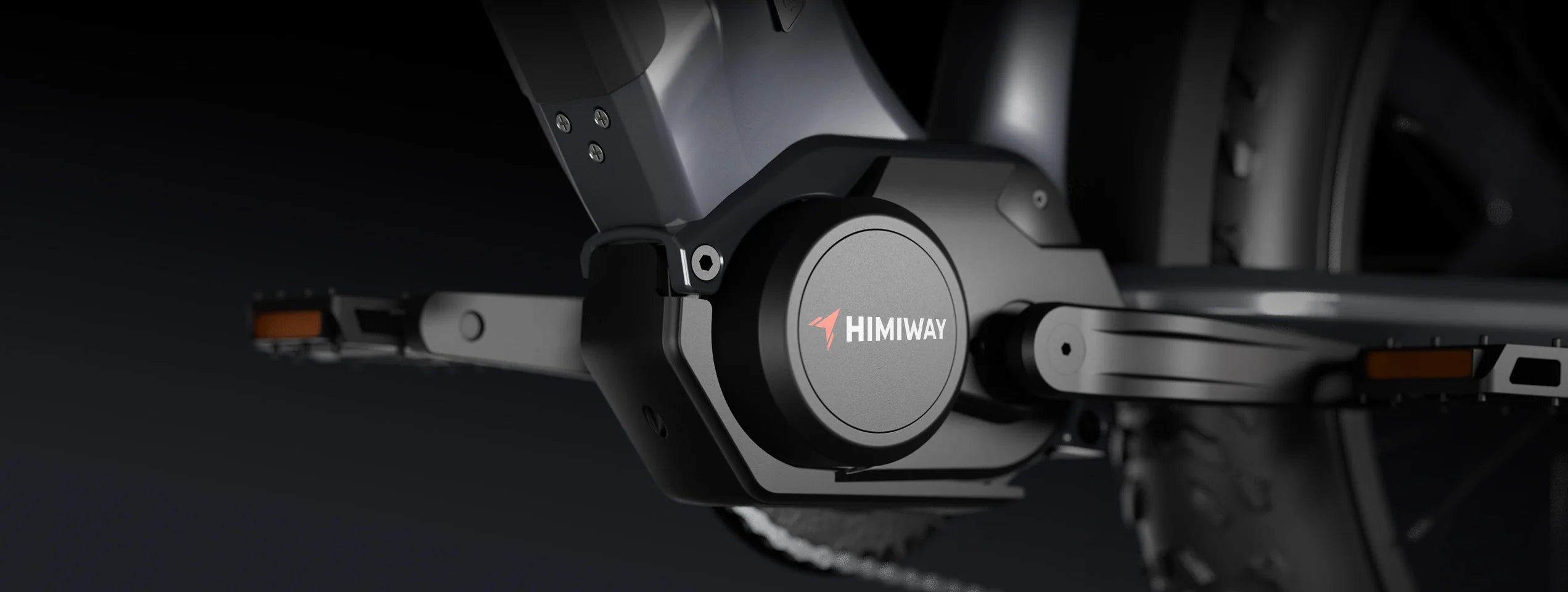

Updated 750W Motor
The torque-sensing mid-motor provides massive amounts of torque when powering up steep hills or accelerating quickly from a dead stop. With 1300W of peak motor power, you can easily conquer the most rugged terrains.
- 130 Nm max torque
960Wh High Performance Lithium-Ion Battery
New top of the line Samsung/LG battery technology combined with a 5,000mAh single cell capacity in smaller size for larger diversity. Compared with other 3500mAh cells made from nickel, cobalat and manganese, this 960Wh (20Ah) battery vastly imporoves the range, stability and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 8+ miles with pedal assist. The battery should maintain 80% capacity after 1,000 charges.
- Battery Weight: 8.8 pounds
- Range can be affected by several factors such as rider/payload weight, incline, pedal assist levels, weather, etc.
Tektro Hydraulic Brakes with 180mm Rotors
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
400lb Payload with Thicker Frame
It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.
- Payload Capacity: 400 pounds
- Weight: 79 pounds
Front Suspension
This alloy front suspension fork features 100mm of travel, a pre-load adjustment and fork lockout, making it in an excellent choice for overland biking.
