Geometry
A. Total Length:
B. Handlebar Height:
C. Handlebar Length:
D. Wheelbase:
E. Wheel Diameter:
F. Minimum Seat Height:
G. Maximum Seat Height:
H. Chain Stay Length:
I. Frame Stack: 31.9 in
K. Effective Top Tube Length:
L. Head Tube Length:
M. Head Angle: 66.8°
N. Standover Height:
Specifications
Range: 60 - 80 Miles*
Battery: LG 48V 20Ah
Motor: 750W brushless geared hub motor
Display: Himiway C2 LCD Display
Total Payload Capacity:
Recommended Rider Heights: 5'4" - 6'3"
Weight (with battery):
Charger: US standard 3.0 A smart charger
Pedal Assist: 0-5, Customizable
Controller: 48V/22A
Components
Throttle: Thumb Throttle
Sensor: Cadence sensor丨Speed sensor丨Brake sensor
Front Fork: Dual Crown Steel Rigid Fork
Rear Shock : EXA A5-RE 180*47mm
Drivetrain: Single Speed
Brakes: Mechanical Disc Brakes
Chain: KMC Z1eHX 120L
Tires: Innova 20x4.0 lA-2149
Seat Post:
Stem: 28.6*31.8*40L
Spokes: 12G
Cassette: 16T Single Speed
Bike Frame: 6061 Aluminum
Pedals: Alloy pedal with reflectors
Headlight: Not Included
Taillight: Integrated Brake Light
Cranks: 142MM Alloy Crankset
Highlights
-
Torque Sensor
The torque sensor gives your ebike a much more natural bike riding feel than a traditional cadence sensor. It replicates the feeling of riding that many of us are used to and simply amplifies your efforts. Pedal hard and you’ll get maximum assist. Back off your intensity, and the assistance system will do likewise. Torque sensors can also be more efficient than cadence sensors, as the power delivered is based on the actual effort you put into the pedals and updates in real time. This efficiency can often mean you can eke extra miles out of a battery charge.
-
Updated 750W Motor
Featuring 750W of nominal power and 1200W peak power, the upgraded brushless hub motor uses the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the magnets' attenuation speed to guarantee a longer life expectancy.
- 86 Nm max torque
- 9 Degree climing angle
-

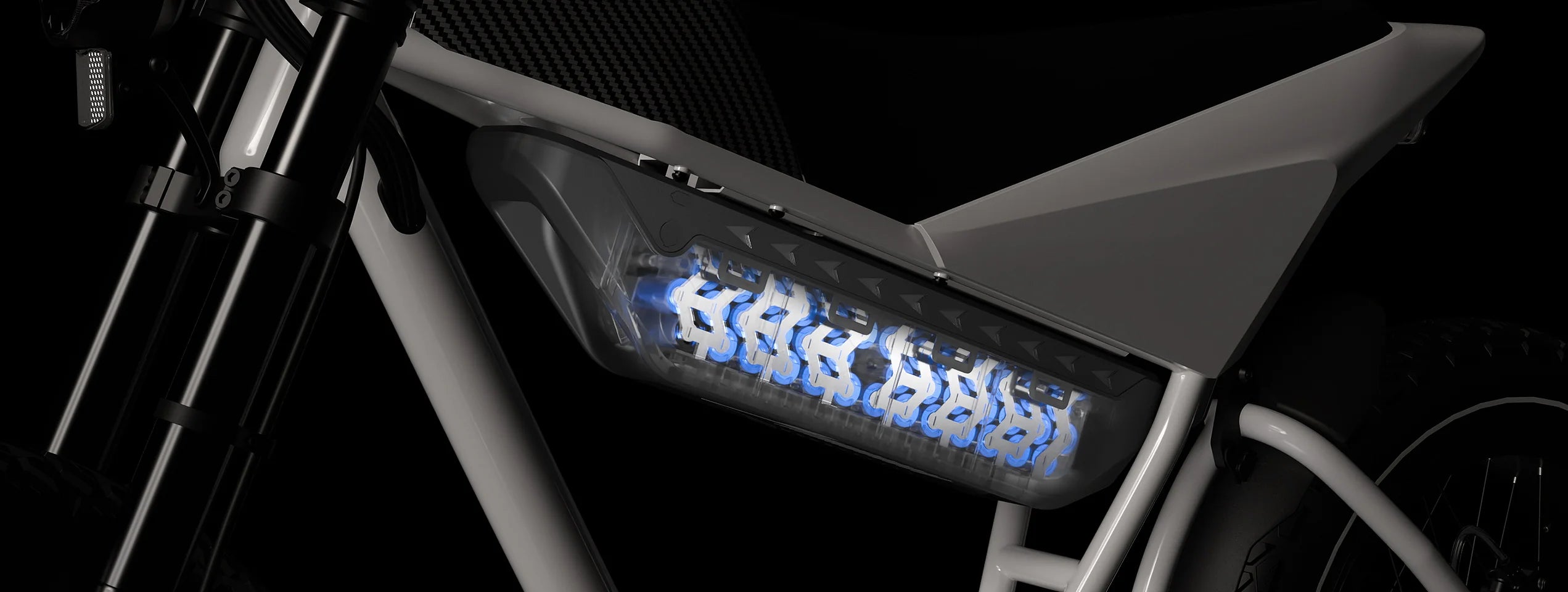

960Wh High Performance Lithium-Ion Battery
New top of the line Samsung/LG battery technology combined with a 5,000mAh single cell capacity in smaller size for larger diversity. Compared with other 3500mAh cells made from nickel, cobalat and manganese, this 960Wh (20Ah) battery vastly imporoves the range, stability and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 8+ miles with pedal assist. The battery should maintain 80% capacity after 1,000 charges.
- Battery Weight: 8.8 pounds
- Range can be affected by several factors such as rider/payload weight, incline, pedal assist levels, weather, etc.
-
Tektro Hydraulic Brakes with 180mm Rotors
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
-

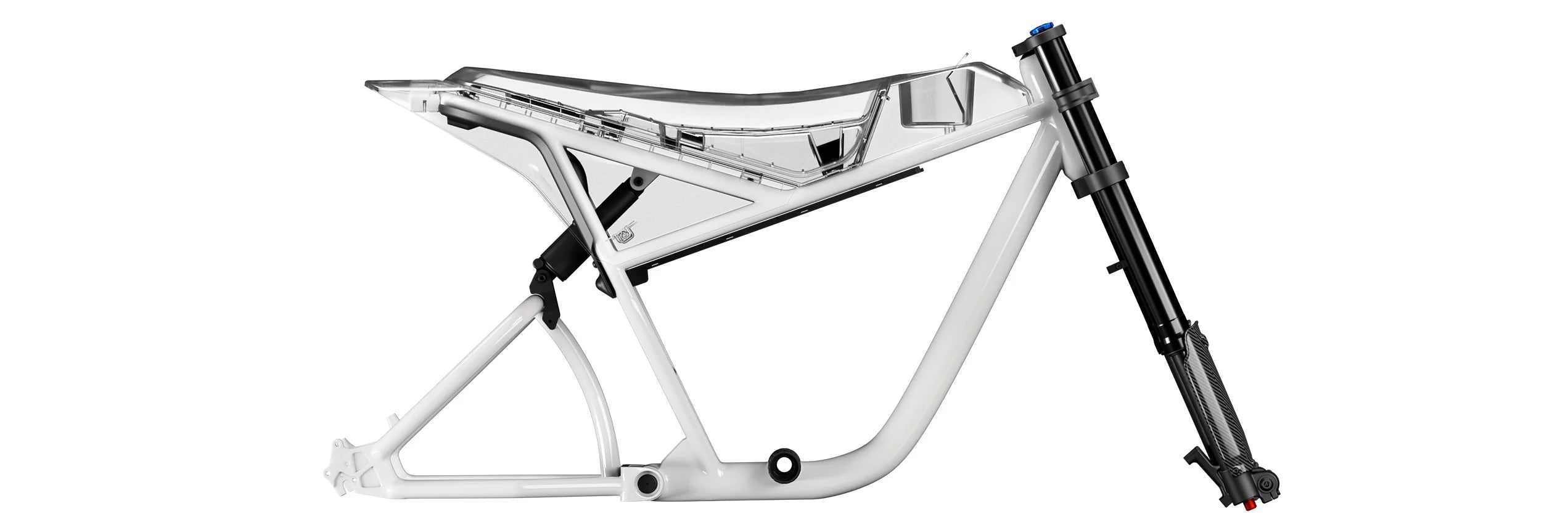

400lb Payload with Thicker Frame
Crafted from 6061 aluminum alloy, our frames combine lightweight resilience with exceptional durability. Resistant to corrosion, they guarantee enduring performance across any terrain. Each ink frame is unique and hand painted.
- Payload Capacity: 330 pounds
- Weight: 88 pounds
-

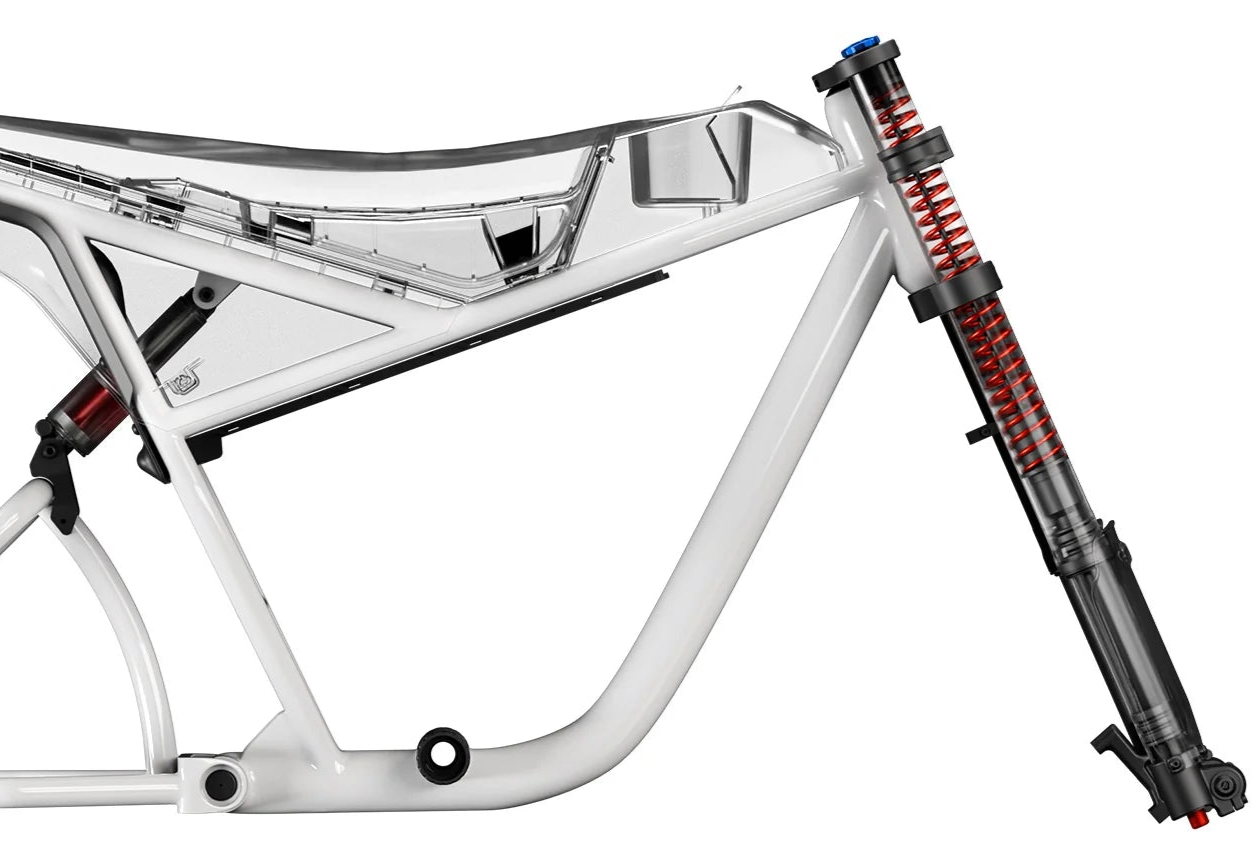

Full Suspension
Enjoy a bump-free ride with the C5's full suspension, boasting a 140mm inverted front fork and a 47mm adjustable rear shock, ensuring comfort on rough terrains.
