Geometry
A. Total Length:
B. Handlebar Height:
C. Handlebar Length:
D. Wheelbase:
E. Wheel Diameter:
F. Minimum Seat Height:
G. Maximum Seat Height:
H. Chain Stay Length:
I. Frame Stack: 23 in
J. Frame Reach: 19.3 in
K. Top Tube Length:
L. Head Tube Length:
M. Head Angle: 71°
N. Standover Height:
Specifications
Range: 60 - 80 Miles*
Battery: LG 48V 20Ah
Motor: 750W Brushless Geared Hub Motor
Display: LCD display with USB charging
Total Payload Capacity:
Recommended Rider Heights: 5'1" - 6'5"
Weight (with battery):
Charger: US standard 3.0 A smart charger
Pedal Assist: 0-5, Customizable
Controller: 48V/22A
Components
Throttle: Half Twist
Sensor: Cadence sensor丨Speed sensor丨Brake sensor
Front Fork: Alloy front suspension fork with lockout and adjustment
Rear Shock :
Drivetrain: Shimano altus M310 7 speed
Brakes: Tektro Hydraulic Disc Brakes
Chain: KMC Z8.3-EPT 114L
Tires: Kenda K1188 Krusade 20x4.0
Seat Post: JY-SP311 34*350mm
Stem: MA-5040 28.6*31.8mm
Spokes: Solid Alloy Wheel
Cassette: Shimano MF-TZ500-7 14-28T
Bike Frame: 6061 Aluminum
Pedals: 9/16" Alloy pedal
Headlight: 48V Luminosity Integrated Headlight
Taillight: Integrated Brake Light
Cranks: Crank arm: IXF-212FA forged alloy 170mm | Chain ring: 46T
Highlights
-
Updated 750W Motor
Featuring 750W of nominal power and 1200W peak power, the upgraded brushless hub motor uses the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the magnets' attenuation speed to guarantee a longer life expectancy.
- 86 Nm max torque
- 9 Degree climing angle
-
Coil Suspension Front Fork
The durable Himiway suspension fork has preloaded adjustments for the spring’s stiffness and a lock-out lever. With 80mm of available compression, it will be the perfect fit for your chosen terrain.
-
960Wh High Performance Lithium-Ion Battery
New top of the line Samsung/LG battery technology combined with a 5,000mAh single cell capacity in smaller size for larger diversity. Compared with other 3500mAh cells made from nickel, cobalat and manganese, this 960Wh (20Ah) battery vastly imporoves the range, stability and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 8+ miles with pedal assist. The battery should maintain 80% capacity after 1,000 charges.
- Battery Weight: 8.8 pounds
- Range can be affected by several factors such as rider/payload weight, incline, pedal assist levels, weather, etc.
-

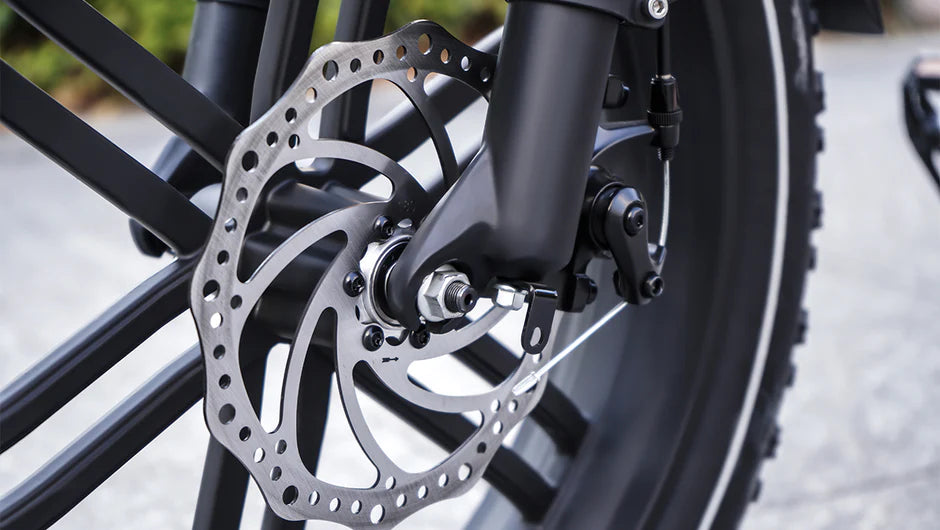

Tektro Hydraulic Brakes with 180mm Rotors
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
-

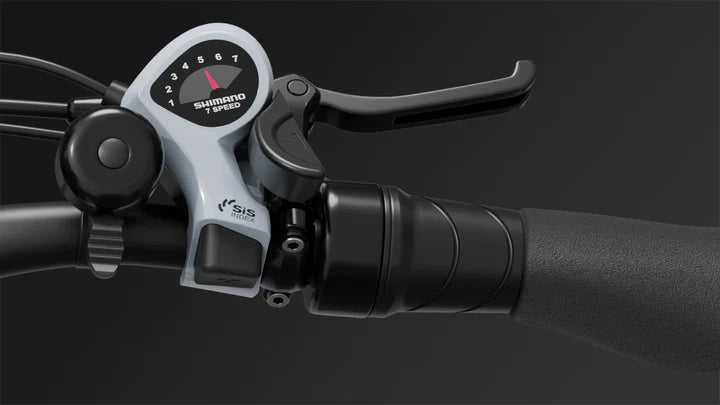

Half Twist Throttle
Immediate power right at the palm of your hand, easily accelerate when you need quick help from the motor.
-

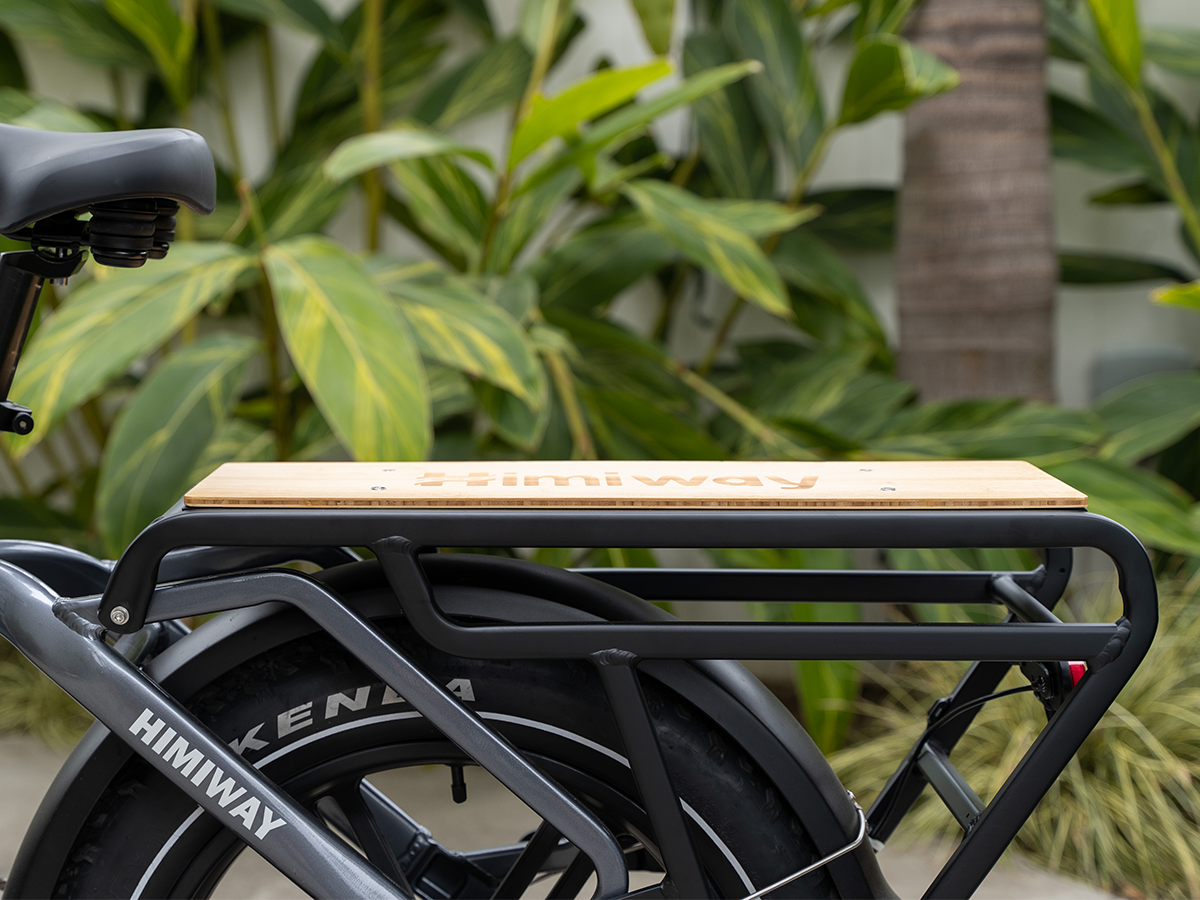

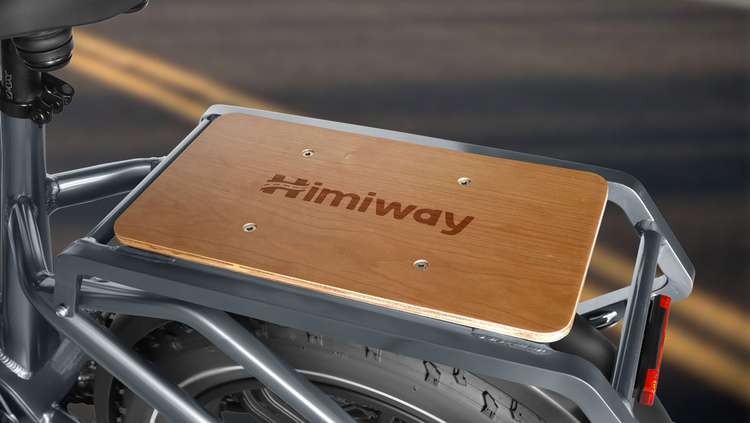

Heavy Duty Rear Rack
The sturdy aluminum rear rack can support loads of up to 120 pounds. You can take a ride with your loved ones, transport your children from school, or transfer some heavy equipment. With Himiway Big Dog, the possibilities are boundless.
