Aventon

Aventon Ramblas 250W Mid-Drive Hardtail eMTB

$2,899.00 USD

~~$2,899.00 USD~~ $2,899.00 USD

Sale Sold out

Shipping calculated at checkout.

Size Small Medium Large X-Large

Quantity

Aventon Ramblas 250W Mid-Drive Hardtail Electric Mountain Bike

Introducing the all-new Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Rugged and reliable, this hardtail, all-terrain ebike offers the ultimate comfort on mountain trails or city streets. It features three pedal assist levels, a top speed of 20 mph, and a battery range of up to 80 miles, allowing you to explore more than you ever have before. With Ramblas you can have fun anywhere you go.

Aventon’s Ramblas comes equipped with a first-ever mid-drive motor for the Aventon line-up. The mid-drive is Aventon-designed offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Adjust the three PAS levels to fine-tune its overall rideability.

Ramblas comes in 4 sizes to suit most adults

Small: 5'1" - 5'5"
Medium: 5'5" - 5'9"
Large: 5'10" - 6'2"
Extra Large: 6'2" - 6'5"

Ramblas Sizing Specs

Frame Size	Small	Medium	Large	X-Large
Wheel Size	27.5"	29"	29"	29"
Seat Tube Length	380mm	410mm	450mm	490mm
Top Tube Length Horizontal	394.5mm	410mm	450mm	668mm
Bottom Bracket Drop	55mm	55mm	55mm	55mm
Head Tube Length	125mm	125mm	125mm	125mm
Head Tube Angle	66.5°	66.5°	66.5°	66.5°
Seat Tube Angle	74.5°	74.5°	74.5°	74.5°
Rear Chainstay Length	465mm	465mm	465mm	465mm
Front Wheel Center	720mm	744mm	770.5mm	796mm
Wheelbase	1179.5mm	1203mm	1230mm	1256mm
Reach	415mm	432.5mm	455mm	481mm
Stack Height	640mm	656.5mm	665mm	665mm
Fork Length	530mm	547mm	547mm	547mm
Fork Offset	44mm	44mm	44mm	44mm
Trail	108.6mm	117mm	117mm	117mm
Standover	683mm	702mm	712mm	719.5mm
Rider Height Range	155-165 cm	165-176 cm	177-188 cm	188-195 cm

Technical Overview

Ramblas comes out of the box as a Class I ebike, with pedal assist and a top speed of 20 MPH. Aventon’s Ramblas is built to the IP67-rated standard. IP67 rating means it’s protected against the effects of immersion in water to a depth between 15 cm and 1 meter. IP67-rated products are referred to as waterproof vs only water-resistant, so you can cross creeks, and ride in rain and mud without worry. Aventon ebikes are not intended to be subjected to a pressurized spray. Do not use a pressure washer or sprayer to clean your ebike.

View full details

Meet the Ramblas

Specifications

Range: Up to 80 Miles*

Battery: Aventon 708Wh 36V/LG 21700 cells

Motor: Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating

Display: LCD Smart "Easy Read"

Total Payload Capacity:

Weight (with battery): 54 lb (Size Large)

Charger: 42V 4A charger

Pedal Assist: 3

Components

Throttle: No throttle (Class 1 ebike)

Sensor: Torque Sensor

Front Fork: RockShox 35 Silver TK 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube

Drivetrain: Sram NX Eagle 1x12

Brakes: Sram DB8 mineral 4 piston hydraulic disc brakes, 180mm Rear Rotor, 200mm Front Rotor

Chain:

Tires: S Maxxis Rekon 27.5x2.4", M/L/XL Maxxis Rekon 29x2.4"

Seat Post: Dropper: 150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length

Stem: 35mm Ø, 40mm length

Cassette: Sram SX Eagle 1x12 11-50t

Bike Frame: Single-Butted Aluminum Alloy

Pedals: 9/16" Alloy Platform

Headlight: Integrated

Taillight: Integrated

Chainring: Sram Nx 34t

Highlights

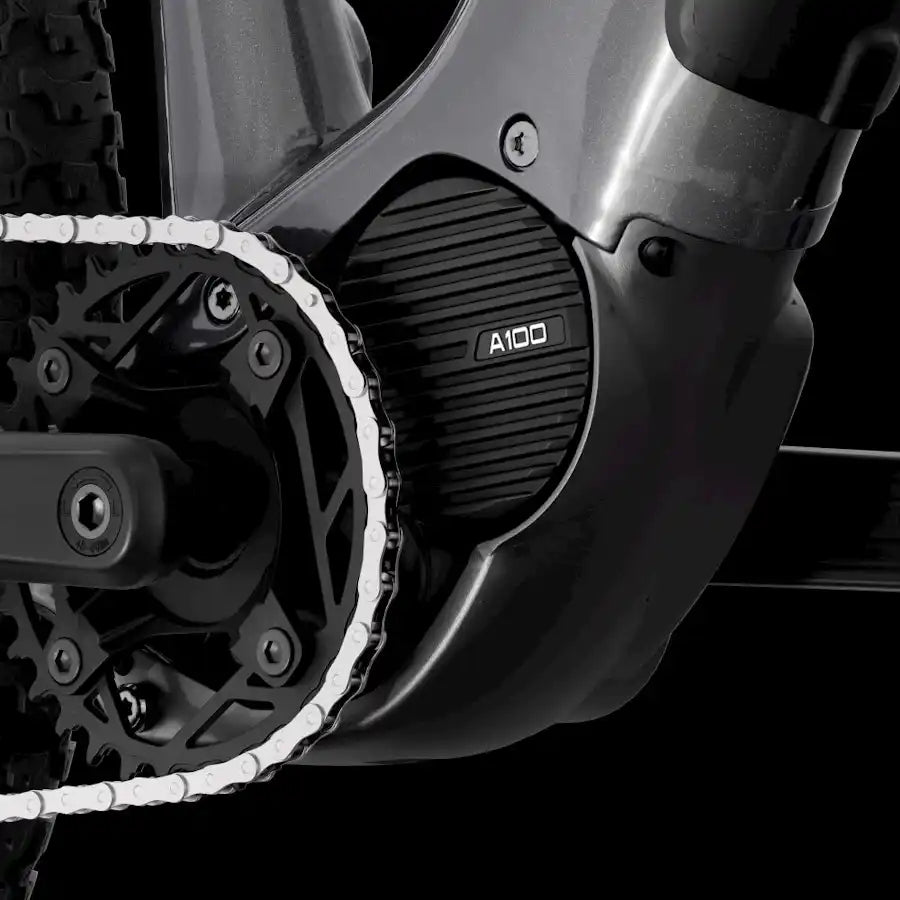

250W Mid-Drive Motor and Battery
Aventon's mid-drive motor was specially designed to give riders full control over their riding experience. With 250 watts nominal power, 750 watts peak power, 36V battery and 3 levels of pedal assist, riders can customize their ride as they see fit, optimized for trail riding and daily commutes.
Ramblas Display
The new Ramblas display has the same great features as Aventon's Full Color Display, only in a more compact setting. It's slightly smaller and repositioned to protect it from unforeseen circumstances while riding your local trails or streets.
SRAM DB8 Mineral Four Piston Brakes
Enhance your speed control on steep slopes and loose terrain with Ramblas' Sram DB8 mineral 4 pistion hydraulic disc brakes. With four pistons (instead of 2), Ramblas' brakes offer superior modulation, meaning more brake fluid is distributed across a larger surface area, allowing you to stop when you need to the most.
Pedal Assist
Quickly switch between 3 levels of pedal assist: eco, trail and turbo. Add a boost to the way you move with a top speed of 20 mph (Class 1) and a range of up to 80 miles on a single battery charge.

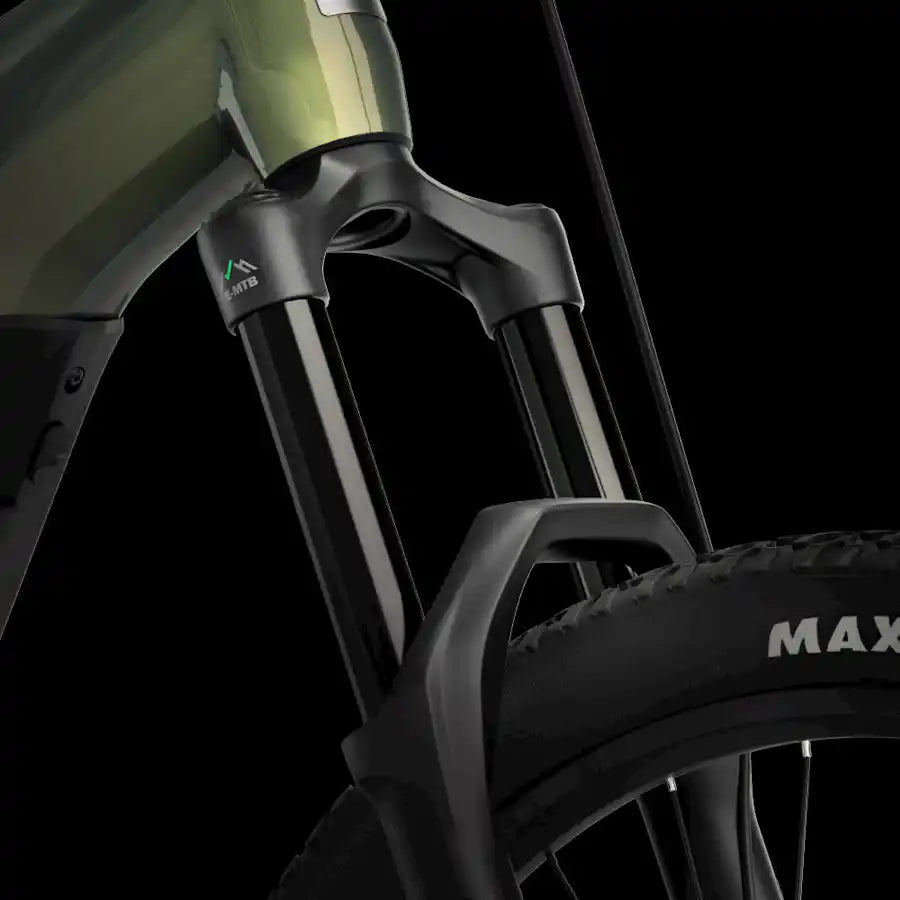

Rockshox 35 Suspension Fork
Ramblas Rockshox 35 front fork suspension with 130mm of travel allows riders to find comfort on the roughest of terrain. Roll over rocks, tree roots, curbs and rugged roads and let the suspension take care of the rest.
Sram NX 12-Speed Drivetrain
Ramblas comes equipped with a Sram NX 12-speed drivetrain for more riding efficiency. The 11-50t cassette makes climbing a breeze while rolling around on the flats is fast and efficient.
